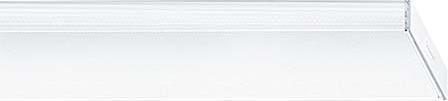

ECOOS2 Slim 3500-940 MSRC L12 MPO E3D

This minimalist semi-recessed ceiling LED luminaire features microprismatic optics. The luminaire wattage is 35.7 W, equipped with an electronic ballast and LED converter. The LED service life is 100,000 hours until the luminous flux drops to 90% of the initial value. The colour location tolerance (initial MacAdam) is 3. The luminaire luminous flux is 3,490 lm, with a luminous efficacy of 98 lm/W. It has a colour rendering index of Ra > 90 and a colour temperature of 4000 K.

Light control is achieved through patented Curved Wave Guide light injection and MPO-plus micropyramid structure optics, which provide defined light emission with a UGR of less than 19 and luminance of less than 3000 cd/m² at 65° for screen applications. The gear tray is made of extruded aluminium profile painted white. The luminaire consists of an optic and gear tray, with design end caps available in different colours and a suspension kit that must be ordered separately.

The luminaire is wired halogen-free and has passed a glow wire test at 650°C. Dimensions are 1264 x 152 x 48 mm, and the weight is 6.2 kg.
