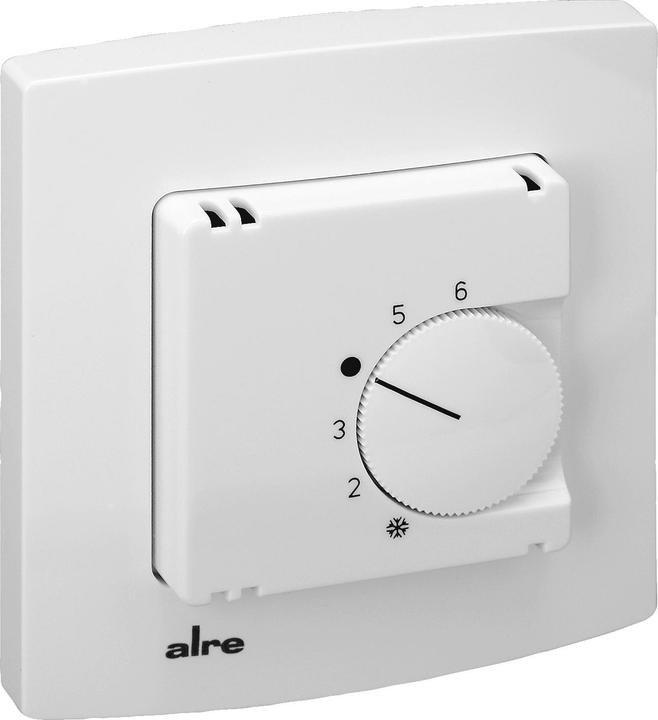

Alre-it Room Temperature Controller RTBSU-401.000#21

Manufacturer: Alre-it
Designation: Room Temperature Controller Normally Open, complete
Type: RTBSU-401.000#21
Design: On/Off
Power Supply Type: 230 V AC

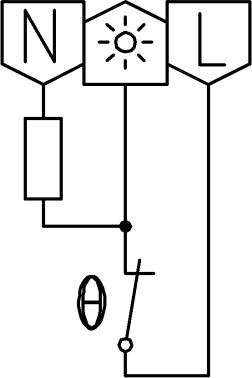

Connection: 3-Wire
With Receiver: no
Measuring Range: 5..30 °C
External Sensor: no
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: no
Differential Value: 0.5 K
Adjustable Differential: no
Temperature Readable: no
Sensor Type: Bimetal
Mounting Type: Flush-mounted
With Display: no
Operation: Rotary
With Drinking Water Circuit: no
Contact Type: Normally Open (NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Explosion-Proof: no
Color: Pure White
RAL Number: 9010
Height: 71 mm
Width: 71 mm
Depth: 41.8 mm
Class of Temperature Controller: II

The Alre-it Room Temperature Controller RTBSU-401.000#21 is an electromechanical flush-mounted room temperature controller designed for regulating or monitoring temperatures in offices, living spaces, and hotels. It is suitable for all types of heating systems. The thermal feedback ensures a very precise switching differential. The range limitation located under the adjustment knob allows for modification of the adjustment range. VDE tested.

The electrical connection is made simply without screws. New terminals enable easy and quick installation. Wiring is simplified through color coding of the terminals. The modular principle saves time: practical sequence for mounting the controller, frame, and cover. The compact installation volume ensures comfortable and fast mounting in the flush-mounted box. Temperature control is possible even without the cover. The closed design and optimal screw retention complete the product.
