Busch-Jaeger Room Temperature Controller Module 1098 U-102

Manufacturer: Busch-Jaeger
Designation: Room temperature controller module without remote sensor
Type: 1098 U-102
With receiver: no
External sensor: no
Control characteristic: P
Suitable for heating: yes
Suitable for cooling: no
Temperature readable: yes
Mounting type: flush-mounted
With display: yes
With drinking water circuit: no
Protection class (IP): IP20
Explosion-proof: no
Color: black
Height: 71 mm
Width: 71 mm
Depth: 42 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Further details:

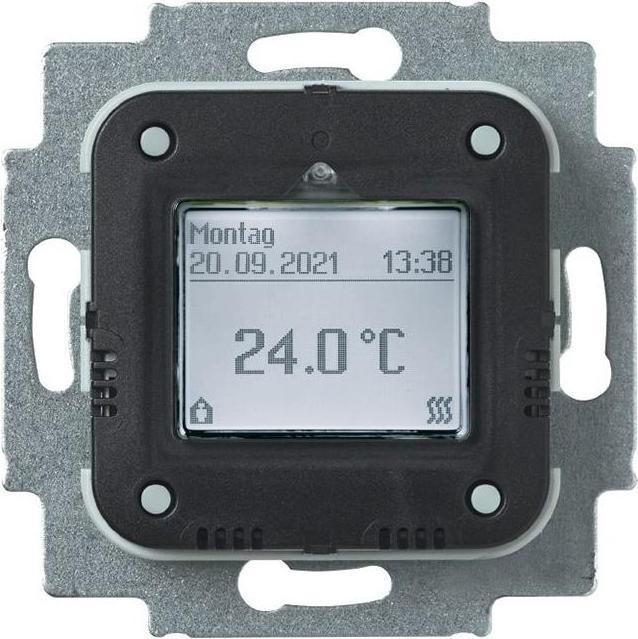

Electronic room temperature controller with setpoint display and timer. Switching contact, potential-free - opens when the set temperature is reached. Easy adjustment via illuminated, menu-driven text display. Up to 4 switching times per day can be freely set for each day of the week. Display switchable between setpoint/actual temperature. With screw fastening. Automatic summer/winter time changeover adjustable. Backup time > 10 years. Suitable for central plate 6435-xxx. Class of the temperature controller: IV. Contribution to room heating energy efficiency: 2.0%. To be mounted only in conjunction with standard flush-mounted device boxes according to DIN 49073. For the controller, actuators in the "fail-safe closed" design are required. Sensor length: 4 m. Sensor: NTC, 10 kilo-ohms at 25 degrees C. EAN: 4011395310960.
