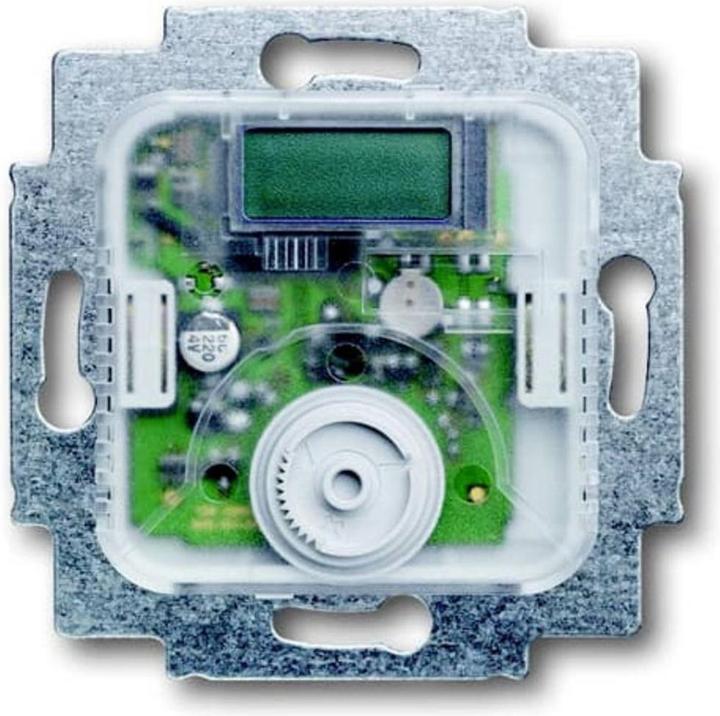

Busch-Jaeger Room Temperature Controller Module 1094 UTA

Manufacturer: Busch-Jaeger
Designation: Room Temperature Controller Module Normally Open + TA 230V, 10A
Type: 1094 UTA
Design: On/Off
Power Supply Type: 230 V AC
Connection: three-/four-wire
With Receiver: no
Measuring Range: 5..30 °C
External Sensor: yes
Thermal Feedback: Series
Control Characteristic: P
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: no
Differential Value: 0 K
Adjustable Differential: no
Temperature Readable: yes
With Noise Level Indicator: no
Sensor Type: Resistance Sensor
Mounting Type: Flush-mounted
With Display: yes
Operation: Rotary
With Drinking Water Control: no
Contact Type: Normally Open (NO)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP20
Explosion Proof: no
Color: Other
Height: 71 mm
Width: 71 mm
Depth: 20 mm
Class of Temperature Controller: I
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no

Additional Details:
With Temperature Display Actual Value
Automatic Controller Calibration
Switching contact opens when the set temperature is reached.
With Expansion Mounting
With separate connection for time-controlled night reduction (4K).
Contribution to Room Heating Energy Efficiency: 1.0%.
To be installed only in conjunction with commercially available flush-mounted device boxes according to DIN 49073.
For the controller, actuator valves in the "normally closed" design are required.
Switching Temperature Difference ± 0.5 K.
EAN: 4011395078617.
