Busch-Jaeger room temperature controller insert 1097 UTA

Manufacturer: Busch-Jaeger
Designation: Room temperature controller insert
Voltage: 230V
Current: 5A alternating current
Type: 1097 UTA
Design: On/Off
Type of power supply: 230 V AC

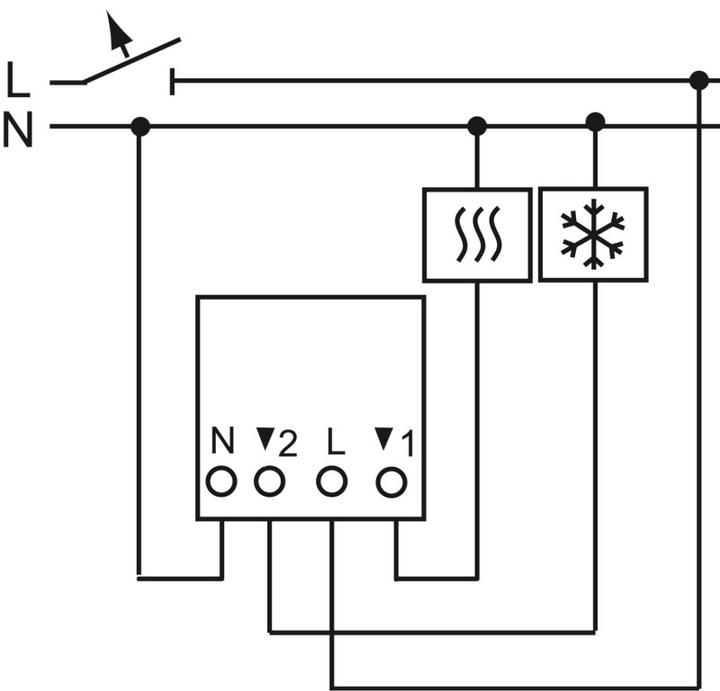

Connection: three/four-wire
Measuring range: 5 to 30 °C
Suitable for heating: Yes
Number of outputs for heating: 1
Differential value: 0.5 K
Temperature readable: Yes
Design transducer/sensor: Resistance sensor
Mounting type: Flush-mounted
With display: Yes
Operation: Rotary
Contact design: Changeover contact (NO/NC)
Max. voltage of contacts: 230 V
Voltage of contacts: 230 V
Max. contact load: 10 A
Protection class (IP): IP20
Color: Other
Height: 12 mm
Width: 52 mm
Depth: 32 mm
Class of the temperature controller: I
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Additional details:

• With temperature display for actual value
• Automatic controller calibration
• With spread fixing
• Contribution to room heating energy efficiency: 1.0%
• Only compatible with commercially available flush-mounted device boxes according to DIN 49073 or Busch-Jaeger art. no. 3040 flush-mounted box masonry, 3050 flush-mounted box hollow wall, or 3060 flush-mounted box concrete.
• For the controller, control valves in the version "currentless closed or open" are required, e.g., article no. 6164/10-102.
• Switching temperature difference: ± 0.5 K
• EAN: 4011395078648.
