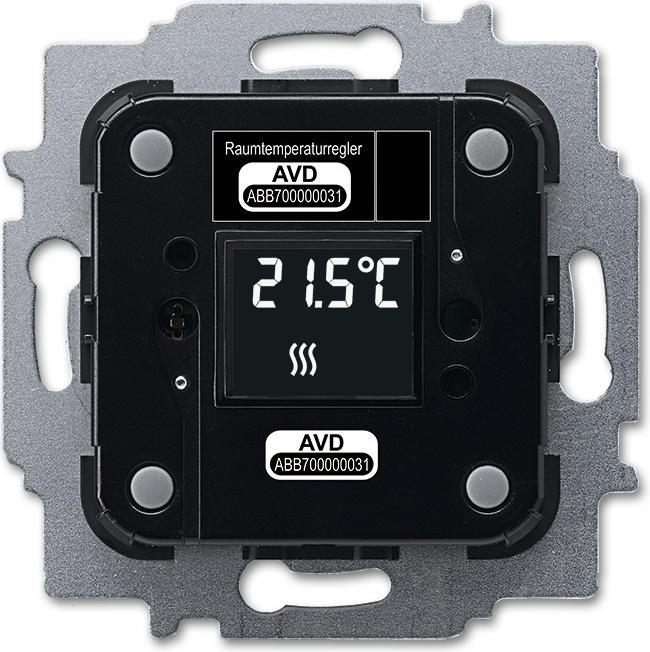

Busch-Jaeger room thermostat 6108/18
Manufacturer: Busch-Jaeger
Designation: Room thermostat with display
Type: 6108/18
Bus system KNX: Yes
Bus system Powernet: Yes
Other bus systems: Other
Composition: Control element
Mounting type: Flush-mounted
With theft/dismantling protection: Yes
With LED display: Yes
With display: Yes
Material: Plastic
Material grade: Thermoplastic
Surface protection: Untreated
Surface finish: Glossy
Color: Black
Manual setpoint adjustment: Yes
Presence pushbutton: Yes
Parallel operation possible: Yes
Protection class (IP): IP20
Class of temperature controller: I
Min. depth of device box: 33 mm

Busch-Jaeger room temperature controller 6108/18: further details
Operating element with room temperature controller function for controlling heating, ventilation, and fan coil actuators. For controlling commercially available actuators. For contacting the central disc 6236-xxx. With integrated temperature sensor. With temperature display SET value. Master/slave operation. With base load operation. The bus connection is made via the enclosed bus terminal. Temperature controller class: 1. Contribution to space heating energy efficiency: 1.0%. If required, please refer to the current online catalog for software and description. From ETS4: Commissioning via native ETS application.
