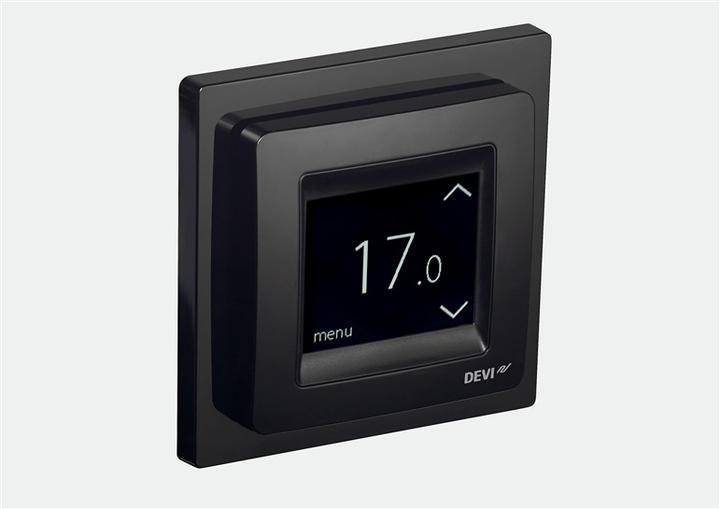

DEVIreg Touch, intuitive in-wall timer thermostat. The DEVIreg Touch is an intuitive in-wall timer thermostat with a touch display, which can be operated either as a double thermostat or solely with floor temperature measurement. It offers external floor sensor detection, an absence function, a third-generation timer, and remote fault analysis through a patented code feature. It is compatible with many switch programs.

Technical specifications:

• Voltage: 220-240 V, 50/60 Hz
• Standby consumption: 400 mW
• Load: 16 A / 3680 W at 230 V
• IP class: IP21
• Sensor type: NTC 15 kOhm at 25 °C
• Sensor length: 3 m
• Dimensions (HxWxD): 85 x 85 x 20-24 mm (in-wall depth: 22 mm)
• Control type: On/Off
• Power supply type: 230 V
• Connection: 2-wire
• Control characteristic: other
• Suitable for heating: yes
• Number of heating outputs: 1
• With display: yes
• Clock type: weekly clock
• Clock design: digital
• Operation: touchscreen
• Contact design: electronic
• Max. contact voltage: 230 V
• Max. contact load: 16 A
• Protection class (IP): IP21
• Color: black, RAL number 9005
• Width: 95 mm
• Depth: 24 mm
• Height: 85 mm
• Class of temperature controller: II
• Power consumption in standby mode: 400 W.
