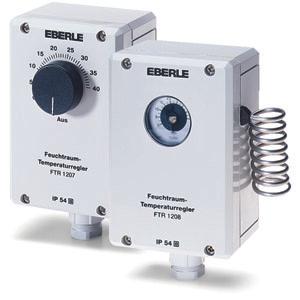

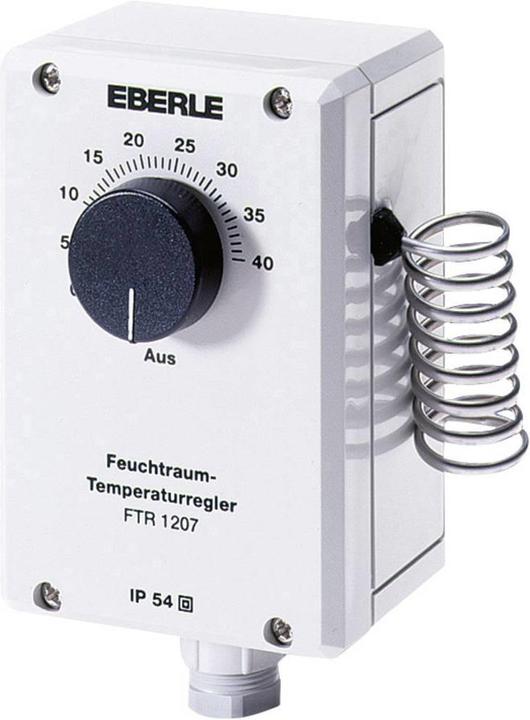

Eberle Controls Temperature Controller FTR 1207

Manufacturer: Eberle Controls
Designation: Temperature Controller
Type: FTR 1207
Design: On/Off
Power Supply Type: None
Connection: Three/Four-Wire
With Receiver: No
Measuring Range: 0..40 °C
External Sensor: No
Thermal Feedback: None
Control Characteristic: Other
Suitable for Heating: Yes
Number of Heating Outputs: 1
Suitable for Cooling: Yes
Number of Cooling Outputs: 1
Differential Value: 45413 K
Adjustable Differential: No
Temperature Readable: Yes
With Noise Level Indicator: No
Sensor/Probe Design: Other
Mounting Type: Surface Mount
With Display: No
Operation: Rotary
Concealed Operation: No
Contact Type: Changeover (NO/NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 16 A
Protection Class (IP): IP54
Color: Gray
Height: 145 mm
Width: 68 mm
Depth: 85 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

The wall-mounted temperature controller is particularly suitable for use in outdoor areas or damp rooms. This controller operates on the principle of liquid expansion. The temperature setting range is accessible from the outside.
EAN: 4017254048494.
