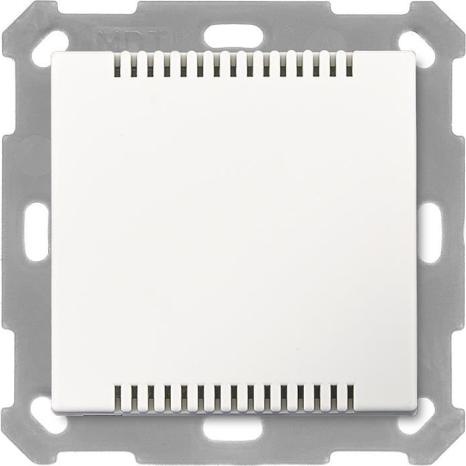

MDT technologies Combi sensor SCN-CO2MGS.02

Manufacturer: MDT technologies
Designation: Combi sensor 55, CO2 / VOC
Type: SCN-CO2MGS.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Version: CO2 sensor
Mounting type: Flush-mounted
With bus coupling: Yes
With DCF77: No
Acoustic signal: No
With heating: No
Colour: White
RAL number (similar): 9010
Protection class (IP): IP20

Further details: CO2 / VOC combi-sensor 55, pure white glossy. Version with 2 sensors. Integrated bus coupling unit. Combi-sensor for measuring CO2 and mixed gas concentration (VOC), room temperature, and relative humidity. Upper and lower threshold value adjustable for each measured value. Integrated room-temperature controller (2-point, PI, PWM). Air-goods control function can be set as a step/PI controller for CO2 or VOC sensor. 4 step controllers with 1-bit outputs or 1-byte output with adjustable thresholds. PI controller with externally adjustable setpoint and adjustable control parameters. Air quality lamp function adjustable to CO2 or VOC sensor with 4 colour channels and adjustable 1-bit/scene/RGB or HSV output objects. Day/night function. Installation in windproof flush-mounted box with supplied support ring. Supply via KNX bus without auxiliary voltage. Integrated bus coupling unit.
