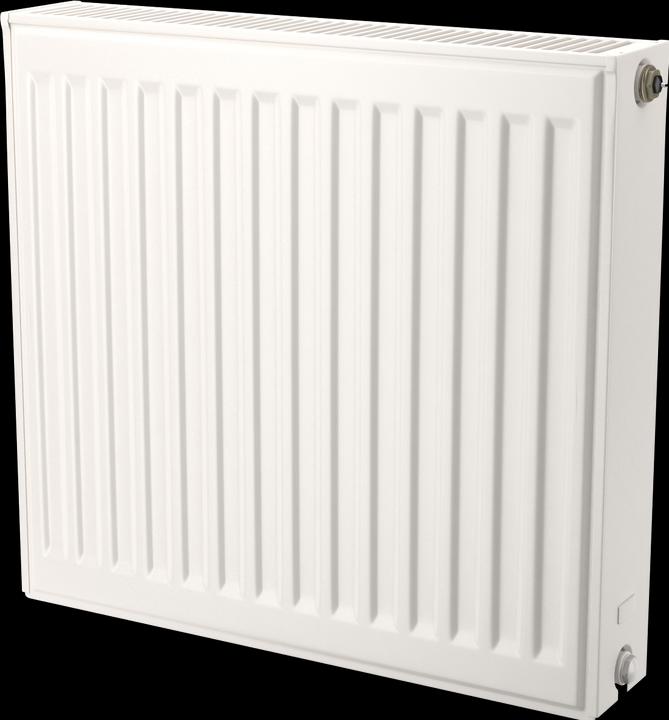

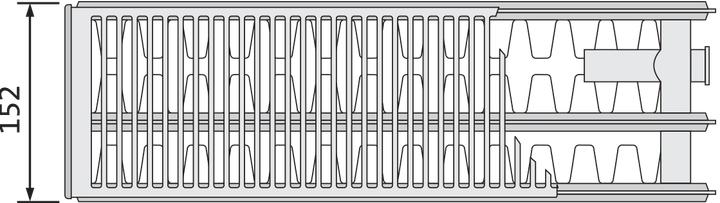

Lower connection radiator with thermostat element. Top product with three profile plates and three convectors. Height from 300 mm to 900 mm, length from 400 mm to 3000 mm, output from 539 W to 9780 W (75º / 65º / 20º). Connection at the bottom, standard mounted on the right. Thermostat element including wall bracket, louver, and air vent.

The compact radiator is a classic flat radiator that meets the highest standards of quality and efficiency. Unlike conventional radiators, where all pipes are visible, the upper and side covers give compact radiators a pleasant and attractive appearance. The selection of models is as extensive as with all our flat radiators. Compact radiators are available in various designs to suit your space.

The valve model is a variant of the classic compact radiator, where all pipes and valves are hidden inside, giving it a delicate and tidy appearance.

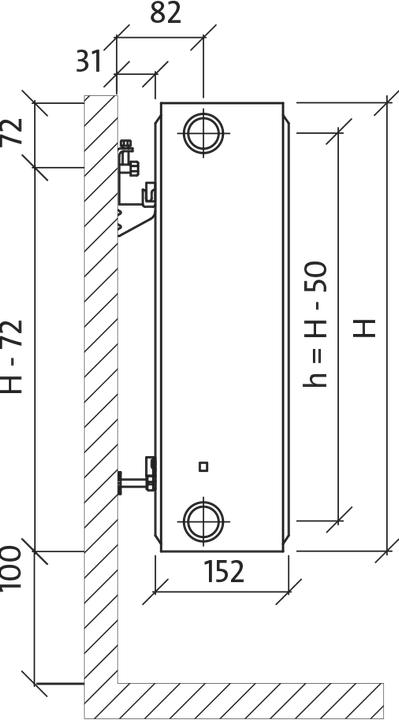

Technical specifications: Universal PURMO valve compact radiator with profiled panels and convection elements, side covers, and cover grille. Two lower and four side connection sockets with internal thread G ½" allow for bottom connection and, if necessary, side connection. Radiator with Oventrop primary control thermostat valve.

Material: high-quality carbon-free rolled steel sheet FePO 1 according to EN 10130. Distance of vertical water channels: 33.3 mm. Nozzles: 2 x G ½" lower connection right (left - on request), 4 x G ½" side connection. Operating pressure: 10 bar. Maximum temperature: 110 °C. Test pressure: 13 bar. Color: white RAL 9016, other colors from the RAL palette - on request. Accessories: mounting elements, louver, air vent (included).
