Schneider Electric Wiser Radiator Thermostat CCTFR6100

Manufacturer: Schneider Electric
Designation: Wiser Radiator Thermostat
Type: CCTFR6100
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: Zigbee
Bidirectional Wireless: yes
Mounting Type: Radiator Valve
With Bus Coupling: yes
Built-in Continuous Control Temperature Regulator: yes
Manual Control Buttons on the Drive: yes
Temperature and Stroke Display: no
Master/Slave Function: yes
Nominal Voltage: 3 V
Bus Voltage Supply: no
Protection Class (IP): IP30

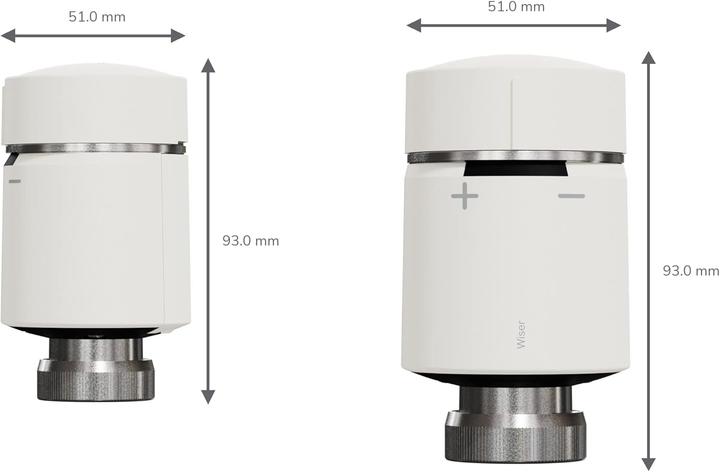

The Wiser Radiator Thermostat regulates the hot water flow of the radiator within a Wiser heating control system (Zigbee). It offers easy installation and commissioning. Up to 64 devices including a hub can be connected through a single system. Further details are available in the online documentation. The dimensions are 51 x 93 mm (diameter x depth).

It enables a modular smart home connection via the Wiser system, on-site and remote app control, schedules, moments (scenes), and automations through the Wiser Home App. Zigbee 3.0. Installation is straightforward and operation is powered by 2x alkaline batteries (AA). It is the successor to MEG5935-0000. System configuration is done via the Wiser Home App (online and offline). Additional installation support is provided through the eSetup app for qualified electricians.
