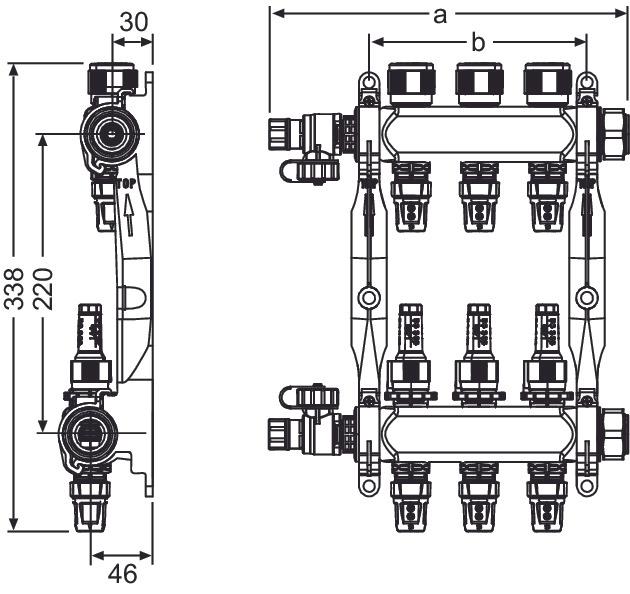

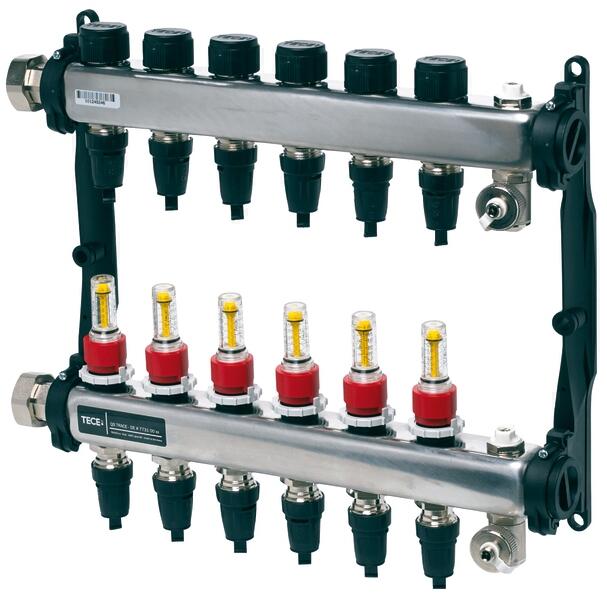

Discharge fittings with pre-assembled plug fittings type Logo for connecting TECEfloor heating pipes dimension 16 type SLQ Al/PE-RT and SLQ MDXc 5S. Connectors with Euro cone connection that can be disassembled afterwards. Heating circuit distributor beam with large chamber volume, polished surface. Plastic holder with quick-mount function. Integrated return valves with double O-ring seal on the valve stem. Valve disc with O-ring seal for closing the heating circuits. Lockable flow meter 0.5-4 l with locking mechanism according to DIN EN 1264-4. Sight glasses can be replaced under system pressure. Batch identification and traceability.

Installation note according to § 13 NAV.

Please note that devices with a connection value of 230V are delivered either with a protective contact plug or a fixed connection (without plug), depending on the power rating. If the device has a fixed connection, a qualified professional must be commissioned for installation. All devices with a connection value of 400V and above must be operated via a suitable high-voltage connection and may only be connected by a qualified electrician. For devices with a rated power of more than 12KW, approval from your network operator is required. Please contact the network operator or an installation company registered in the network operator's installer directory before installation. Such an installation company will assist you in obtaining the necessary approval from the respective network operator.
