DT Swiss Alu, 3 Pawl in Ratchet, Shimano 11S Road

Price in EUR including VAT
Ratings
Delivered between Fri, 5.9. and Tue, 9.9.
7 pieces in stock at supplier
free shipping

Product details

Upgrade kit for converting DT Swiss 370 hubs with 3 pawls to the Ratchet LN ratchet system. The end caps can be reused with the same freehub.

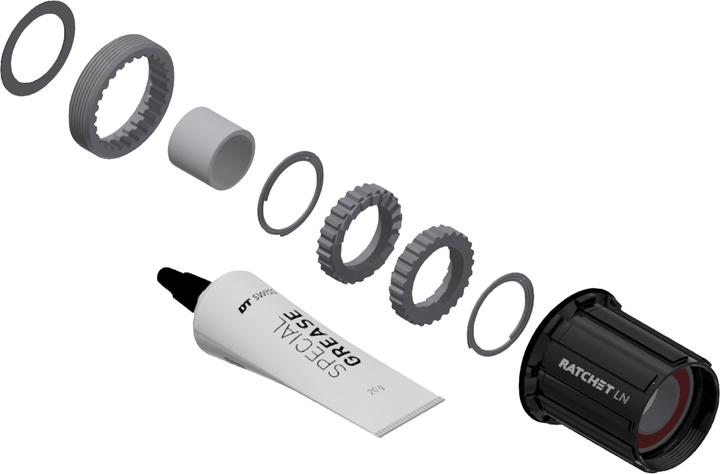

Included in the package:

  • Ratchet LN freehub aluminum Shimano HG
  • Two springs
  • Ratchet/ratchet disc set with 18 teeth
  • Spacer
  • Washer
  • DT Swiss special grease, ratchet disc grease 25g

Optional ratchet discs with 24, 36, or 54 teeth are available if a different engagement angle is desired.

For the installation of the maintenance kit, the following tools are also required:

  • Thread ring removal tool
  • Thread ring removal tool for 3 pawls.

Key specifications

Material
Aluminium
Bike area of use
Racing bikes
Freewheel
Shimano Road
Weight
128 g
Axle diameter
370 mm
Item number
23882109

General information

Manufacturer
DT Swiss
Category
Hubs + Freewheels
Manufacturer no.
HXYXXX00N7689S
Release date
22.6.2022

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Racing bikes

Hub + freewheel Features

Hub type
Freehub body
Axis standard
Thru axle
Axle diameter
370 mm
Cassette compatibility
11-speed, 12-speed
Freewheel
Shimano Road

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Ratchet LN freehub aluminium Shimano Hyperglide spring two pieces Ratchet/tooth lock washer set 18 teeth spacer washer DT Swiss Special Grease, Toothed disc grease 20g

Product dimensions

Weight
128 g

Package dimensions

Length
14.20 cm
Width
4 cm
Height
2 cm
Weight
25 g
