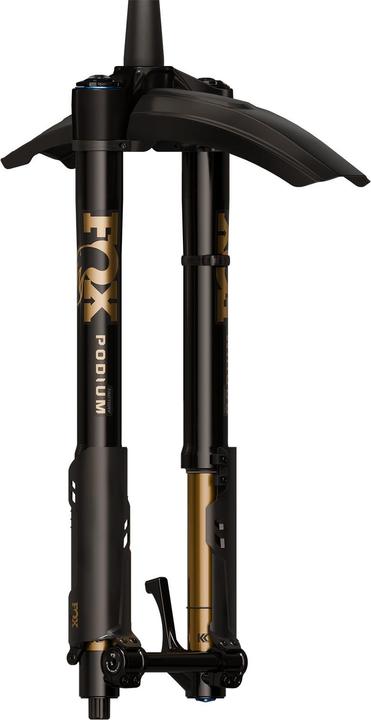

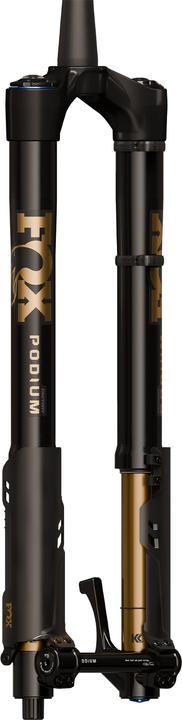

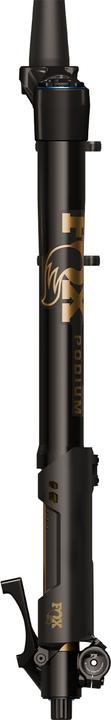

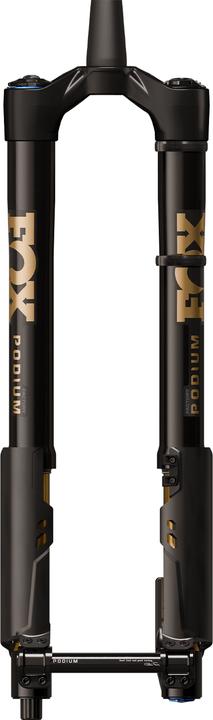

Fox INV Podium Factory Suspension Fork, Grip X2, 170mm, 29", 68HT, black ano/kashima

170 mm, Air
Currently out of stock
Free shipping starting at 30,–

Product details

For demanding riders seeking maximum stiffness and control in an exceptional fork, on par with a downhill dual-crown fork! The 47 mm stanchions, a massively reinforced and revolutionary fork crown, along with a 20×110 mm Boost DH steel axle, provide extraordinary bending and torsional stiffness with the Up-Side Down Podium Fork for maximum tracking on the roughest terrain.

The GlideCore air shaft significantly reduces friction, especially under axial forces, such as when rolling over a large rock or root at high speed. Thanks to its special design, the GlideCore can better absorb such loads, resulting in less misalignment or pressure against the stanchion.

Podium Performance with greater bushing overlap allows for 175 mm of guide overlap – 32% more than the FOX 38, resulting in minimal friction and continuous lubrication of all seals for optimal performance.

The finely adjustable GRIP X2 damper is specifically designed for the upside-down chassis. Enhanced compression support and tailored rebound damping enable the best setup for precise suspension tuning for any rider and terrain.

The designed inverted chassis makes riding noticeably more agile, and the carbon fork guards reliably protect against stone impacts and scratches on the Kashima-coated stanchions.

Key specifications

Suspension travel suspension fork
170 mm
Suspension system
Air
Fork shank diameter
1.5"
Wheel diameter
29"
Item number
57962399

General information

Manufacturer
Fox
Category
Bike fork
Release date
24.4.2025

Colour

Colour
Black
Exact colour description
Black

Material

Material steerer
Carbon

Fork properties

Bike area of use
Electric bikeMountain bike
Suspension travel suspension fork
170 mm
Suspension system
Air
offset
44 mm
Bike fork functions
Boost
Model year
2026

Compatibility

Fork shank diameter
1.5"
Wheel diameter
29"

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
2500 g
