Product Information

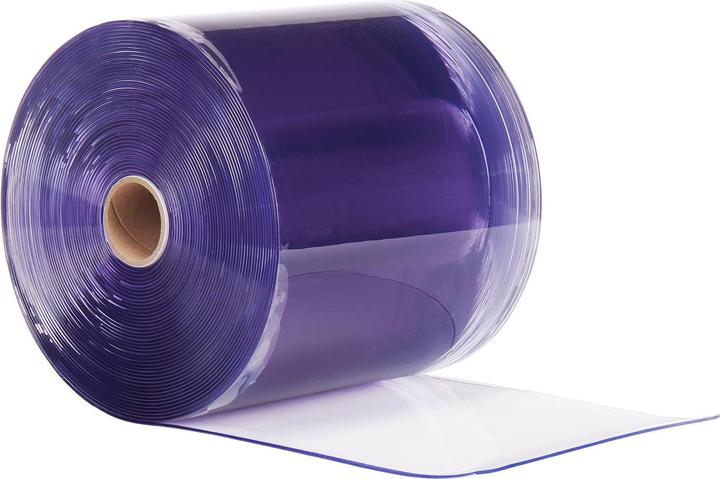

PVC Strip Curtain 30 cm

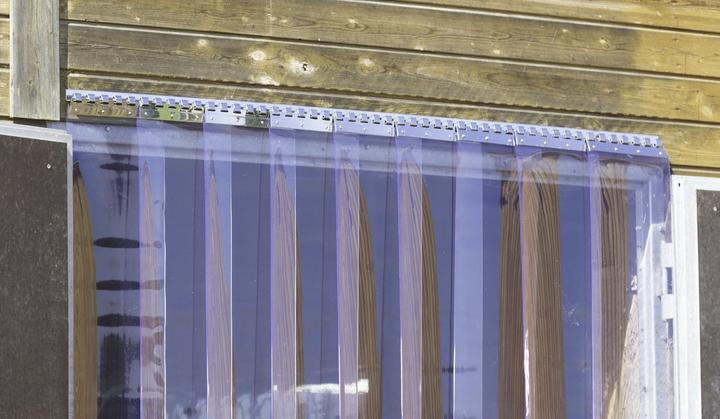

Optimal wind and cold protection for box stalls, horse stables, and open barns. Additionally, it reduces the fly nuisance in your stables.

The swing door film is made of 3 mm thick, UV-stabilized plastic. The film is crystal clear and poses no injury risk due to its rounded edges.

The total width is 300 mm per film. The swing door film provides optimal wind and cold protection for box, horse, and open stables. Other passages can also be protected from weather influences. This significantly saves energy costs compared to rooms with unprotected openings like doors or gates. It has been proven that the number of flies decreases in areas where the swing door films are used. Thus, both horses and livestock benefit from the acquisition of the transparent swing door films.

The film consists of 3 mm thick, UV-stabilized, transparent strips, which pose absolutely no injury risk due to their rounded edges. The strips can be individually tailored to your needs. Each film has a total width of 30 cm.

How to order correctly:

Your door has a width of 120 cm and is 215 cm high. The film should overlap by approximately 30%.

This results in:

1.2 m (door width) - 0.30 m (strip width) = 4 strips

With 30% overlap = 4 x 1.3 = 5.2 strips

Round up 5.2 strips generally = 6 strips

Add 10 cm for the mounting height.

6 strips x 2.25 m = 13.5 m swing door film

Delivery includes:

1 x Hauptner PVC Strip Curtain 30 cm.
