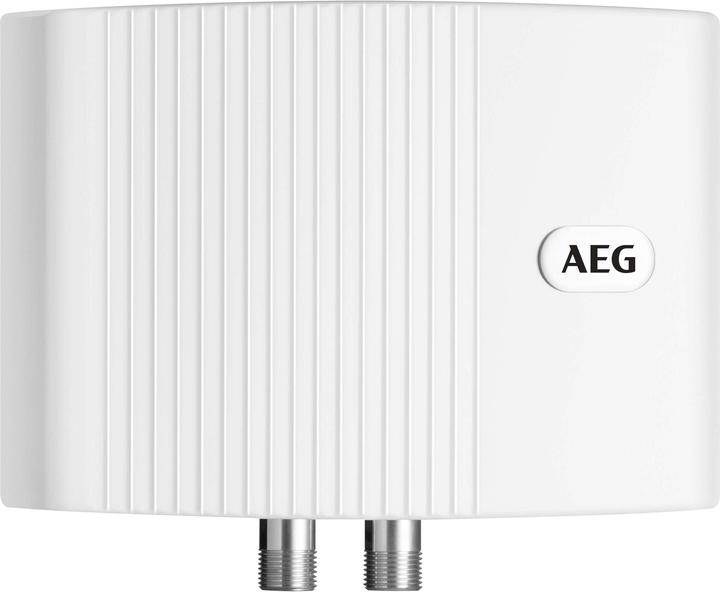

AEG Haustechnik MTE 570 Electronic small instantaneous water heater for hand basin only, 5.7 kW, without plug, VDE
Only 3 items in stock at supplier
Product details
The electronically controlled small instantaneous water heaters maintain a constant outlet temperature regardless of the inlet temperature. The bare wire heating system ensures a fast and efficient hot water supply. An internal temperature limit can be set. The electronic small instantaneous water heaters heat the water directly at the tap and only when it is needed. This avoids energy and water losses due to long piping, as seen in central systems. The electronic small instantaneous water heaters are particularly suitable for hand wash basins where a constant outlet temperature is desired.
Application area: Suitable for a hand wash basin in guest toilets. Not suitable for kitchens and bathrooms. A small storage heater or an instantaneous water heater starting from 11 kW is necessary here.

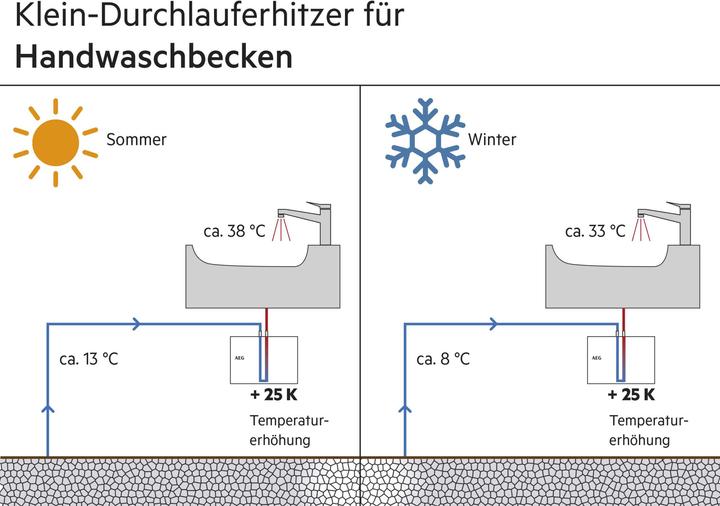

Comfort feature: Small instantaneous water heater for fixed connection. Provides warm water in seconds (approx. 35 °C). The outlet temperature depends on the inlet water temperature in the building. Increases the water temperature by approximately 25 °C. Hot water output is approximately 3.7 l/min.

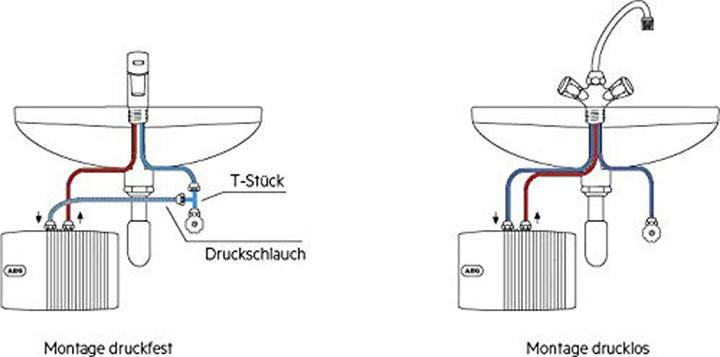

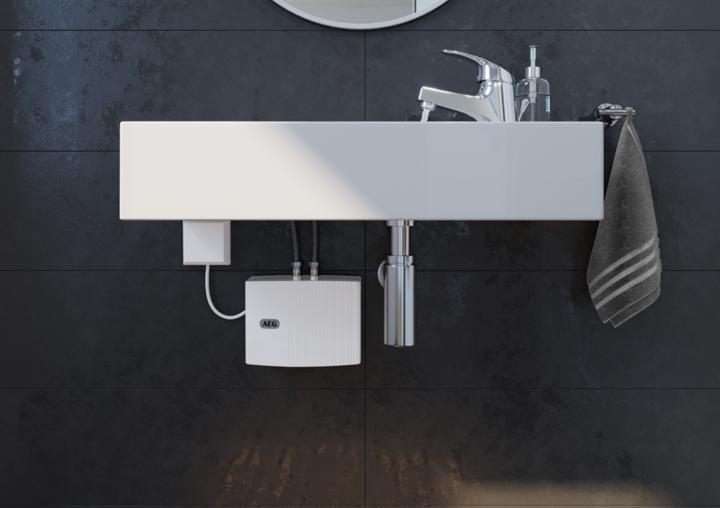

Country approval: Germany. Water connections made of metal. Complete with pressure hose and T-piece. Special jet regulator for optimal jet pattern. Temperature adjustable internally from 30 to 50 °C. Suitable for both pressureless and pressure-resistant fittings. Constant outlet temperature through electronics. Designed to supply a hand wash basin with maximum efficiency. Maximum flow rate adjustable internally. For under-sink or over-sink installation. Solar-compatible up to 55 °C, with reheating up to 45 °C.
Boiler type | Instantaneous water heater |
Volume | 0.10 l |
Item number | 33611721 |
Manufacturer | AEG Haustechnik |
Category | Boilers |
Manufacturer no. | 231216 |
Release date | 17.5.2023 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Boiler type | Instantaneous water heater |
Version | Small accumulator |
mounting style | Table |
threaded connector | 3/8" |
heating system | Bare wire |
Temperature range | -30° - 50° C |
Temperature display | Digital |
Max. pressure | 10 bar |
Energy efficiency class | A |
Model name | MTE 570 |
Power supply | Electrical connection |
Nominal power | 5.70 kW |
Nominal voltage | 230 V |
Protection type (IP code) | IP25 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Small instantaneous water heater, 5.7 kW, without plug, VDE |

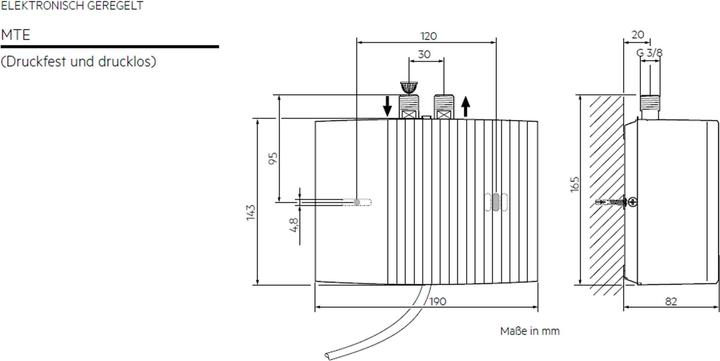

Length | 8.20 cm |
Width | 19 cm |
Height | 14.30 cm |
Weight | 1.40 kg |
Volume | 0.10 l |
Length | 23 cm |
Width | 18 cm |
Height | 16 cm |
Weight | 1.90 kg |
