Afriso 3-way mixing valve ARV 385 PROCLICK DN32 RPL (TG.AF-1338510)
Price in EUR including VAT
Delivered between Sat, 5.7. and Wed, 9.7.
free shipping
Product details

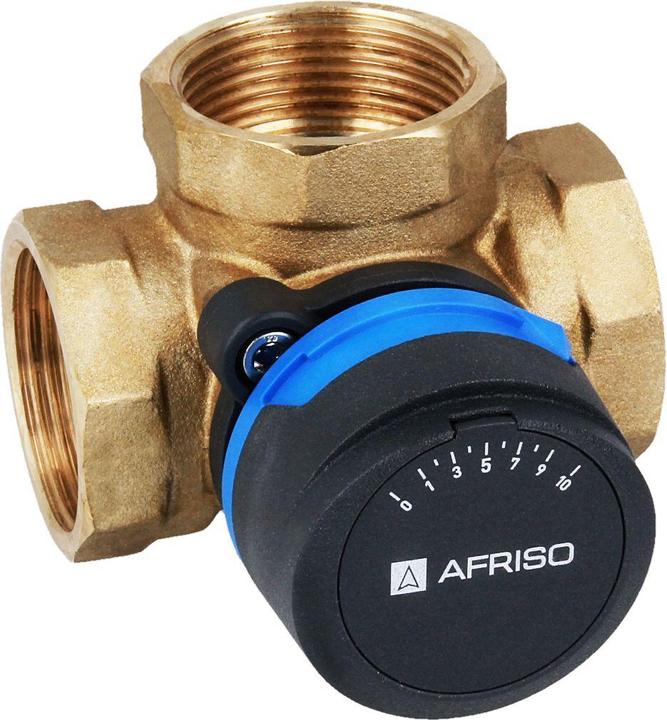

The 3-way mixing valve ARV 385 PROCLICK DN32 RPL from Afriso is a high-quality solution for the precise control of fluid flows in various applications. With a diameter of 32 mm and a maximum operating pressure of 10 bar, this valve is ideally suited for use in heating and cooling systems. The robust brass housing ensures a long service life and high resistance to the temperatures encountered in applications. The valve can withstand temperatures of up to 110 °C, making it versatile for various uses. The easy installation and handling of the PROCLICK system allow for efficient integration into existing systems, while the high flow rate of 16 m³/h ensures effective media control.
- Maximum operating temperature of 110 °C
- Maximum operating pressure of 10 bar
- Housing material made of durable brass
- Easy installation through PROCLICK system.
Material | Brass |
Connection thread | 1/4" |
Diameter | 32 mm |
Item number | 21030255 |
Material | Brass |
Material group | Metal |
Connection thread | 1/4" |
Max. Operating pressure | 10 bar |
Maximum operating temperature | 110 °C |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Diameter | 32 mm |
Length | 9.10 cm |
Width | 9 cm |
Height | 10.50 cm |
Weight | 760 g |
Specifications may include unverified machine translations.
