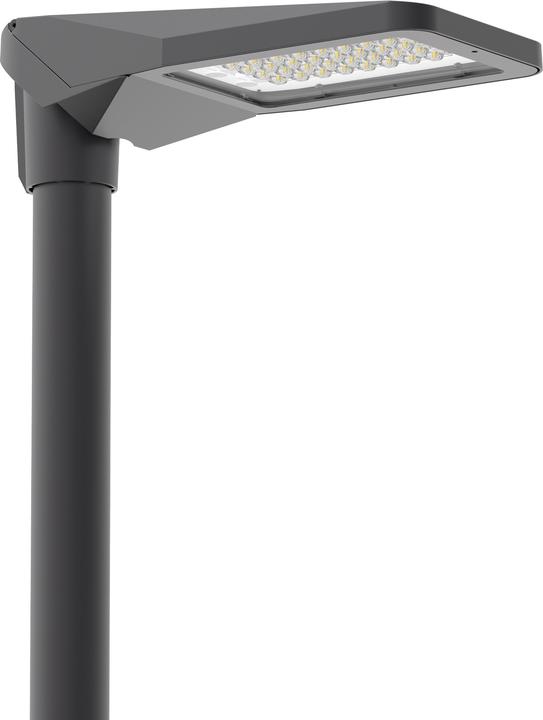

Leipziger Leuchten LED post-top luminaire Alfons I DW7148028

Manufacturer: Leipziger Leuchten
Designation: LED post-top luminaire 4000K DB703
Type: Alfons I DW7148028
Energy efficiency class of the light source according to EU regulation 2019/2015: Not relevant
Illuminant: LED replaceable
With illuminant: Yes
Mounting type: Attachment/attachment
Housing material: Aluminium
Housing colour: Grey
Cover material: Transparent plastic
Rated voltage: 220-240 V
With control gear: Yes
Without dimming function: Yes
Protection class (IP): IP66
Adjustable optics: Yes
Impact resistance: IK10
Protection class: I
Max. system wattage: 27 W
System output: 27 W
Rated luminous flux according to IEC 62722-2-1: 4350 lm
Light colour: White
Colour temperature: 4000 K

More details:
Pole height: 4.00 m to 7.00 m
Lighting task: Low and medium lighting requirements
Includes electronic driver (non-dimmable, without CLO)
Output can be set on the driver by the customer via DIP switch (4 levels)
Optical system: Directional light (multi-layer) thanks to replaceable, age-resistant lens optics
Light distribution: Asymmetrical wide beam
Luminaire head: Die-cast aluminium, powder-coated, flat, clear single-pane safety glass
Fully wired using a plug-in coupling inside the luminaire head
Luminaire head can be opened for surface or surface-mounted installation

ASA 60 or ASA 76 to be ordered separately:
ASA 60 for attachment ø 48 mm to 60 mm (0°, -5°, -10°, -15°) or for attachment ø 60 mm (0°, 5°, 10°, 15°)
ASA 76 for attachment ø 76 mm (0°, 5°, 10°)

Attachment or extension piece. Please order ASA attachment, pole, pole accessories, wall bracket, cable, light bulkhead for rear glare suppression separately.
