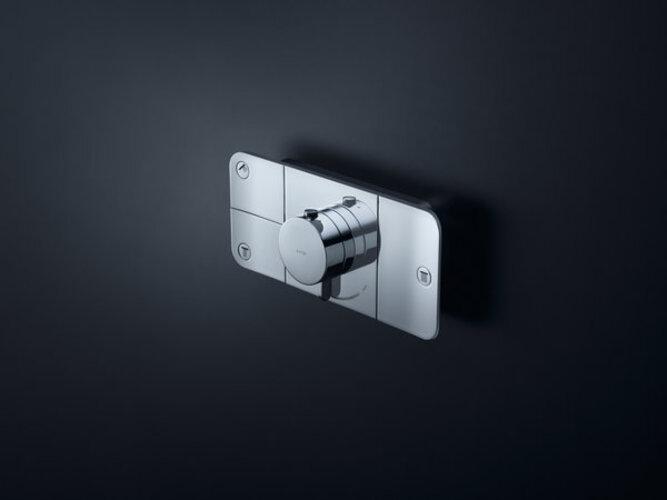

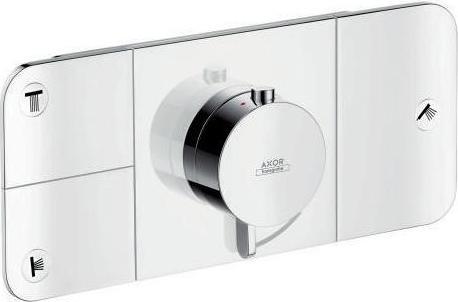

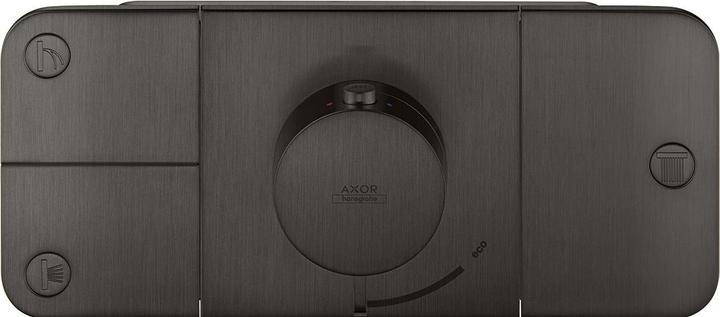

Axor Ready-mounted set ONE f UP thermostat 3 consumers chrome
Product details
Eco function: Flow rate control via lever handle depending on volume flow and installation situation, approximately 50% flow rate reduction. Three consumers and an additional outlet allow for simultaneous use of multiple consumers. Convenient switching on/off of the loads is facilitated by large select buttons. The thermostatic cartridge is used for temperature control, featuring a select valve and a ceramic valve with a 90° security lock at 40°C. Temperature limitation is adjustable, and the thermostat provides the possibility of thermal disinfection. Flow rate per consumer is 24 l/min, with a total flow rate of 30 l/min when all consumers are in use. Operating pressure is a minimum of 1 bar. Scope of delivery includes a finished set and function block with Rüflow inhibitor.
fitting design | Heat governor |
Width | 245 mm |
Bathroom faucet type | Shower fitting |
Colour | Silver |
Material group | Metal |
Item number | 22423016 |
Manufacturer | Axor |
Category | Bathroom fittings |
Manufacturer no. | 45713000 |
Release date | 16.9.2022 |
Colour | Silver |
Exact colour description | Chromed |
Material group | Metal |
Material | Metal/plastic |
Bathroom faucet type | Shower fitting |
fitting design | Heat governor |
mounting style | Flush wall mounting |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 460 mm |
Width | 245 mm |
Height | 225 mm |
Weight | 6.13 kg |
Scope of delivery | Backflow preventer, Function block, Ready set |
