BEG Luxomat AP presence detector 360' 92140 PD4-M-2C-AP white
12 m8 pieces in stock at supplier
Product details
The Luxomat AP presence detector 360' 92140 PD4-M-2C-AP from BEG is a highly advanced presence detector designed for reliable motion detection in indoor environments. With a comprehensive detection range of up to 24 meters and a 360-degree detection angle, this detector provides optimal coverage for various applications. It is ideally suited for surface mounting and can be installed on both walls and ceilings. The detector is equipped with a passive infrared sensor that enables precise motion detection. Additionally, it features a second potential-free contact that can be used to control heating, ventilation, and air conditioning (HVAC) systems. The response brightness and sensitivity are adjustable, allowing for flexible adaptation to different environments. The Luxomat presence detector also includes a forced shut-off and a stair light automation feature, enhancing user convenience.
- Detection range of up to 24 m with a 360-degree detection angle
- Second potential-free contact for HVAC control
- Adjustable response brightness and sensitivity
- Forced shut-off and stair light automation
- Protection class IP54 for use in demanding environments.
type of sensor | PIR |
mounting style | Finery |
Motion sensor type | Presence sensor |
Exact colour description | White |
coverage angles | 360° |
Range | 12 m |
Item number | 22614105 |
Manufacturer | BEG |
Category | Motion sensors |
Manufacturer no. | 92140 |
Release date | 7.10.2022 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Motion sensor type | Presence sensor |
Application range | Indoor |
type of sensor | PIR |
coverage angles | 360° |
Range | 12 m |
Protection type (IP code) | IP54 |
mounting style | Finery |
Power supply | Electrical connection |
Output voltage | 240 V |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Transmission type | PIR |
Control type | Manual |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Alarm pulse: Triggered only when three movements are detected within 9 seconds, An additional potential-free contact for HVAC, Extension of the detection area possible with slave devices, Factory setting 10 min and 500 lux (15 min HVAC), Further functions can be set via optional remote control, Manual switching via push-button possible, One channel for switching light, Presence detector with large detection area, Switching in zero crossing, Version as master device |

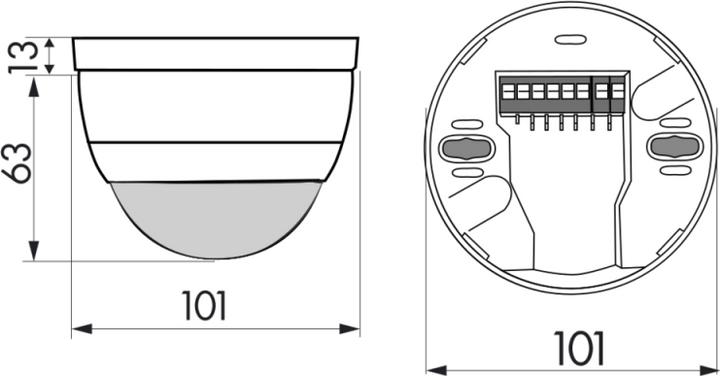

Length | 13 cm |
Width | 13 cm |
Height | 10 cm |
Length | 13 cm |
Width | 13 cm |
Height | 10 cm |
Weight | 500 g |
