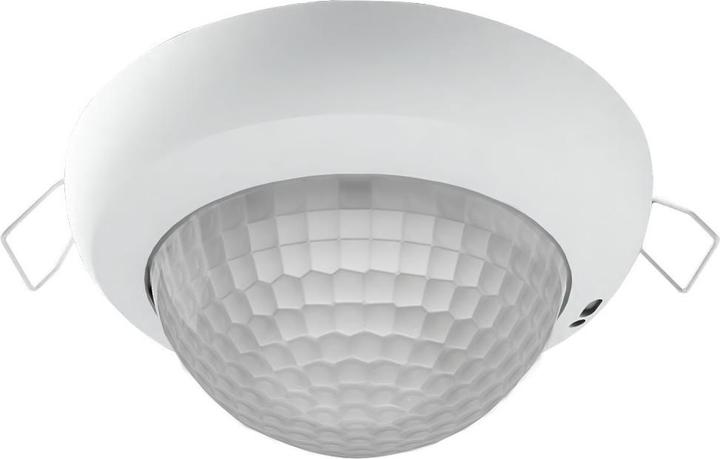

BEG Brück Electronic presence detector KNX PD4N-KNXs-BA-DE

Manufacturer: BEG Brück Electronic
Designation: Presence detector KNX installation, white
Type: PD4N-KNXs-BA-DE
Bus system KNX: Yes
Version: Presence detector
Mounting type: Other
Material: Plastic
Material quality: Other
Surface protection: Untreated
Surface finish: Matt
Colour: White
RAL number (similar): 9010
With bus coupling: Yes
Extension unit input: Yes
Creep protection/back field monitoring: Yes
Operating mode switch: No
Response brightness adjustable: Yes
Teach function for response brightness: Yes

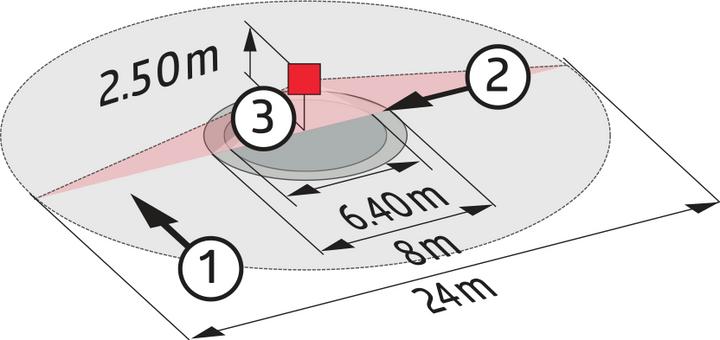

Optimum mounting height: 2.5 m
Max. range to one side: 12 m
Max. frontal range: 8 m
Detection field diameter on floor: 24 m
Min. switch-on time: 1 s
Max. switch-on time: 1440 min
Switch-on time: 1440 min

Further details: KNX presence detector with integrated KNX BUS coupler, KNX Secure capable, parameterisation from ETS 5 for integration into KNX systems, direction detection, mixed light measurement using internal light sensor, fully automatic operation, 1 x light (for switching), 1 x HVAC block (independent), various blocking functions, status indicators that can be switched off.
EAN: 4007529935352.
