Berker 1079710400
Product details

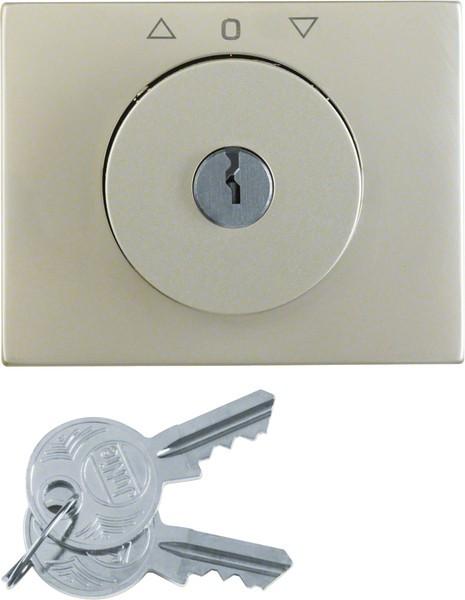

Central piece with lock for the K.5 venetian blind key switch made of stainless steel. The switch program consists of thermoplastic, is shatterproof and impact-resistant, and is available in polar white (similar to RAL 9010) or matte anthracite (similar to RAL 7021). The frame is available in versions from single to five-gang, with various design options for vertical and horizontal mounting. For horizontal mounting of multiple combinations, a frame bridge is not required, allowing for narrow gap dimensions between the rockers and central pieces. The rectangular basic shape features sharp corners and edges with a rounding radius of 0.3 mm. The geometry is flat and the surface is glossy. The rockers and covers have dimensions of 56.5 mm x 71.5 mm and also feature sharp corners and edges with a rounding radius of 0.3 mm. Some installation devices with a separate sealing set are water-protected (UP IP 44). Labeling is partially possible through writable rockers and covers. The products are abrasion-resistant, marked by printing, and can be illuminated according to workplace regulations. The material used is halogen-free and UV-stable, and the surfaces are easy to clean and resistant to disinfectants. Over 200 applications.
Colour | Silver |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 55.50 mm |
Item number | 32079966 |
Manufacturer | Berker |
Category | Accessories switch programme |
Manufacturer no. | 1079710400 |
Release date | 17.10.2022 |
Colour | Silver |
Exact colour description | Stainless steel |
Material group | Metal |
Material | Stainless steel |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Additional properties | Cold start function |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 27.60 mm |
Width | 55.50 mm |
Height | 70.50 mm |
