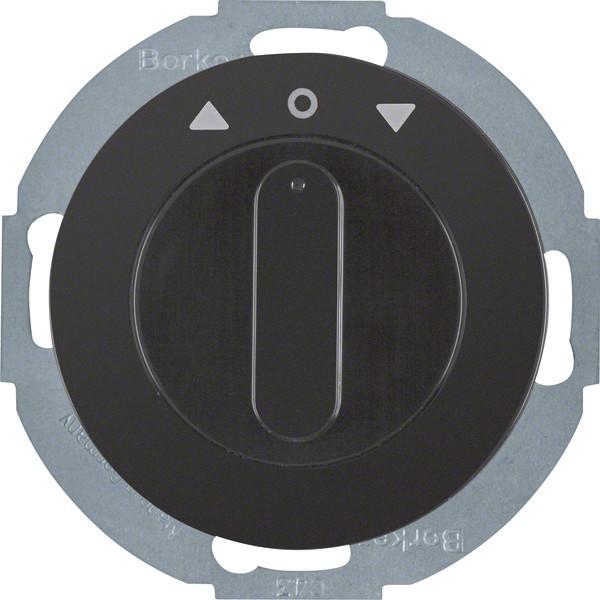

Berker Jal Rotary Switch 2p Z-Stk. 38122145

Manufacturer: Berker
Description: Jal Rotary Switch 2p Z-Stk. R.Classic, black
Type: 38122145
For shutters: yes
For roller shutters: yes
For awnings: no
Composition: Base element
Design: Switch 2-pole
Number of poles: 2
Operation type: Rotary knob
With electrical locking: yes
With mechanical locking: no
Mechanically operable: yes
Electronically operable: no
Mounting type: Flush-mounted
Material: Other
Material quality: Other
Halogen-free: yes
Surface protection: Untreated
Surface finish: Glossy
Mounting type: Screw mounting
Connection type: Screw terminal
Color: black
RAL number (similar): 9005
Transparent: no
Text field/Labeling area: no
Suitable for protection class (IP): IP20
Rated current: 10 A
Nominal voltage: 250 V
Device diameter: 80 mm
Device depth: 54.71 mm
Installation diameter: 80 mm
Installation depth: 32 mm
Min. depth of device box: 35 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Berker Jal Rotary Switch 2p Z-Stk. 38122145: additional details
Shutter rotary switch 2p, central piece, rotary knob, R.Classic, glossy black. Shutter rotary switch with central piece and rotary knob, touch latch function, 0 position, with screw terminals. Note: For conversion to rotary pushbutton, use the locking disc (accessory).
EAN: 4011334489344.
