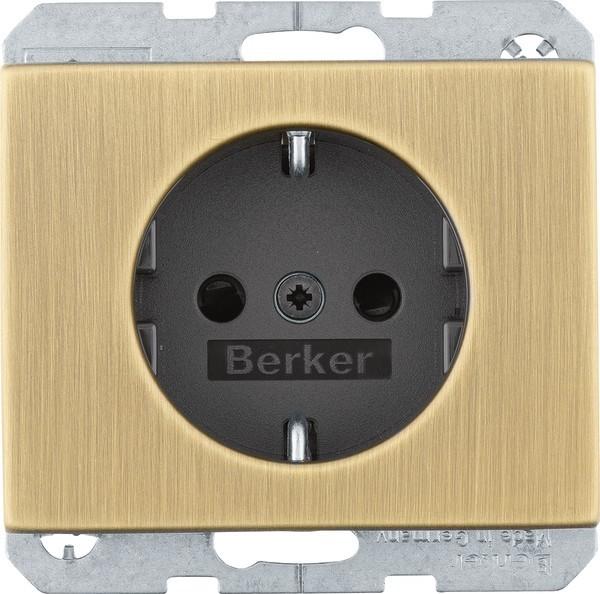

Berker MAN0104017 Socket outlet SCHUKO w.l.o.
Product details
Schuko socket with increased BS, featuring spread claws and K.5 brass terminals with a burnished finish. Switch program made of thermoplastic, shatterproof and impact-resistant, available in polar white (similar to RAL 9010) or matte lacquered anthracite (similar to RAL 7021). Frame options from single to five-gang, with different designs for vertical and horizontal installation. Horizontal installation of multiple combinations without frame webs, allowing for narrow gaps between the switches/central pieces. Rectangular base shape with sharp corners and edges featuring a 0.3 mm rounding radius. With flat geometry and a glossy surface. Switches/covers measuring 56.5 mm x 71.5 mm with sharp corners and edges featuring a 0.3 mm rounding radius. Installation devices can be partially water-protected using a separate sealing set, rated UP IP 44. Possibility for labeling is partially available through writable switches/covers. Abrasion-resistant product labeling through printing. Illuminable according to workplace regulations. The materials used are halogen-free and UV-stable, and the surfaces are easy to clean and resistant to disinfectants. Over 200 applications.
Number of cans | 1 x |
Socket type | CEE 7/3 |
Area of use | Inside |
Exact colour description | Burnished brass |
Mounting type | Flush-mounted |
Item number | 32322007 |
Manufacturer | Berker |
Category | Sockets |
Manufacturer no. | MAN0104017 |
Release date | 18.10.2022 |
Colour | Brown |
Exact colour description | Burnished brass |
Material group | Metal |
Material | Metal (brass) |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Claw fastening |
connector type | Plug terminal |
Additional properties | Contact protection |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Radio frequency | 60 Hz |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 4.20 cm |
Width | 7.10 cm |
Height | 7.10 cm |
