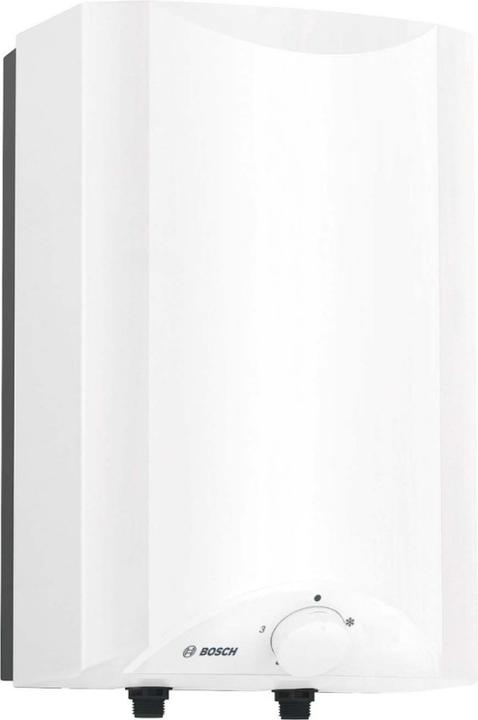

Bosch Thermotechnik small storage tank TR2500 TO 5 B

Manufacturer: Bosch Thermotechnik
Designation: Small storage tank 5L above table
Type: TR2500 TO 5 B

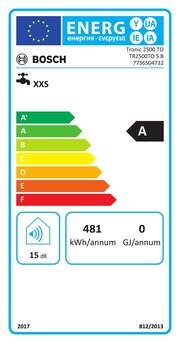

Energy efficiency class: A
Energy efficiency class range: A+ to F
Material of casing: Plastic
Volume of tank: 5 L
Material of boiler: Plastic
Rated power: 2.2 kW
Supply voltage: 220...240 V
Three-phase version: No
Frequency: 50 Hz
Design form: Above-table
Base/undermount boiler: No
With night circuit: No
Connection to hot water pipe: No
Duo design: No
Suitable for boiling water: No
With water cooler: No
Wall installation: No
Horizontal installation: No
Vertical installation: Yes
With temperature display: No
With temperature limiter: Yes
With circulation connection: No
Max. permissible operating pressure: 0 bar
With tap: No
With pressure reducing valve: No
With thermometer: No
With cleaning opening: No
Protective anode: No
Height: 435 mm
Width: 265 mm
Depth: 300 mm
Connection cold drinking water: External thread
Nominal diameter cold drinking water: 1/2 inch (15)
Hot water connection: External thread
Nominal diameter hot water connection: 1/2 inch (15)
Protection class (IP): IP24
Energy efficiency hot water: 37 %
Tapping profile: XXS

Bosch Thermotechnik TR2500 TO 5 B small storage tank: more details
Small storage tank for efficient hot water supply. Under- or over-the-sink unit. Over-the-sink unit, 5 litres, open (unpressurised), for supplying one tap. Efficient and productive: provides the maximum amount of water. Child safety lock and anti-scald protection are integrated inside the rotary selector. Quick and clean installation thanks to CLICKFIX plus assembly technology. Low inventory energy consumption. Single supply for washbasin or sink.
