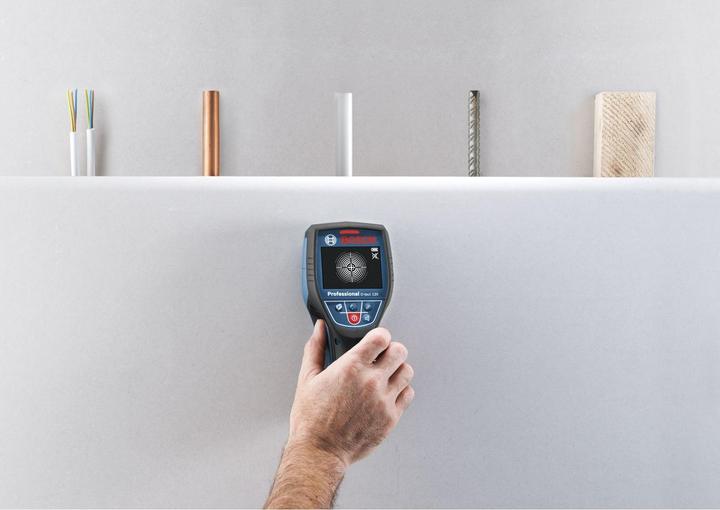

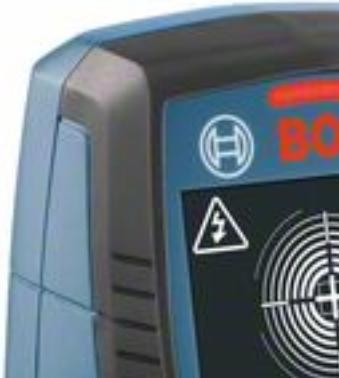

Intuitive radar scanner for almost all materials.

Features

• With spot measurement, precise localization on narrow surfaces is possible.
• The Centre Finder provides a visual guide that allows for the exact positioning of the center of an object.
• Dual Power Source enables operation with both a 12V Li-ion battery and standard alkaline batteries.

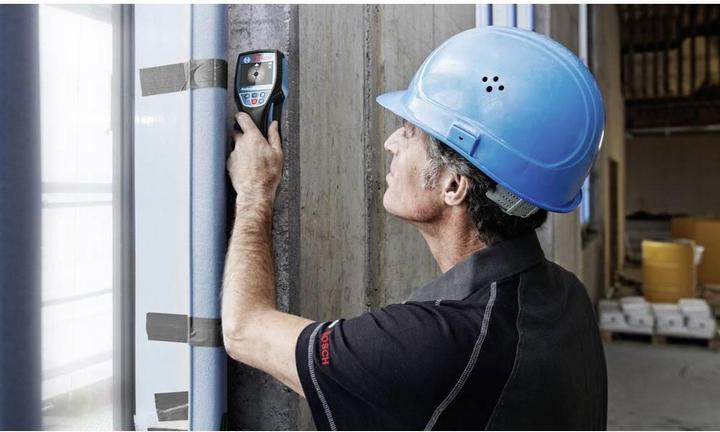

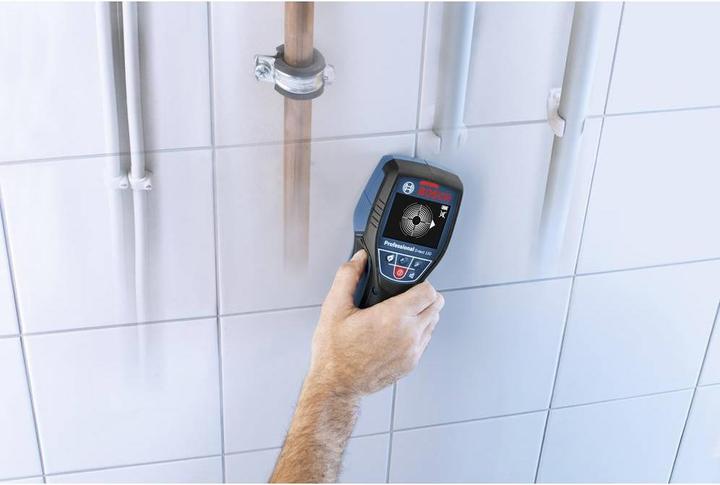

• Suitable for a range of trades, for example, when it comes to locating water-carrying pipes and cables or avoiding mishaps while drilling in carpentry, plumbing, electrical, and HVAC work.
• Features a simple user interface with three self-explanatory selection buttons to adapt to various applications.
• Locates objects up to a depth of 12 cm.
• Acoustic and optical signals alert the user to found objects in the wall.

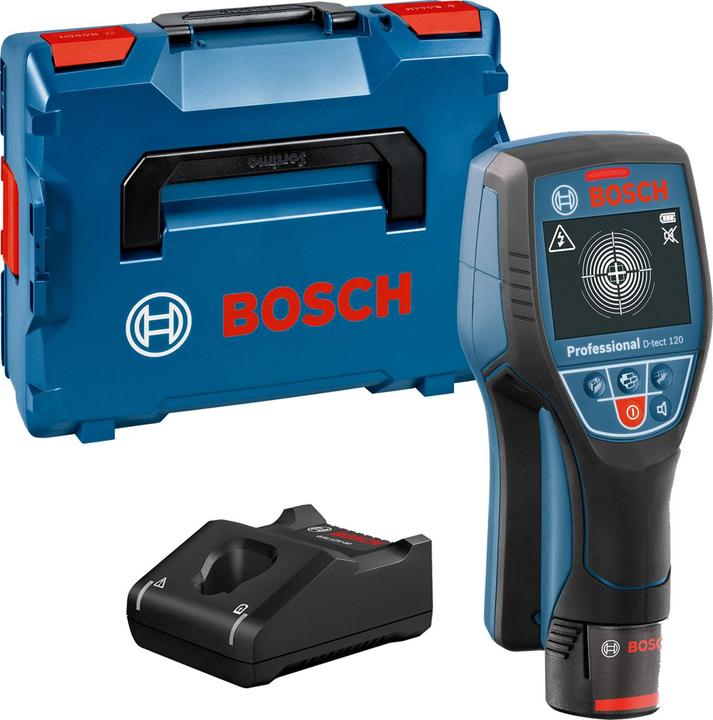

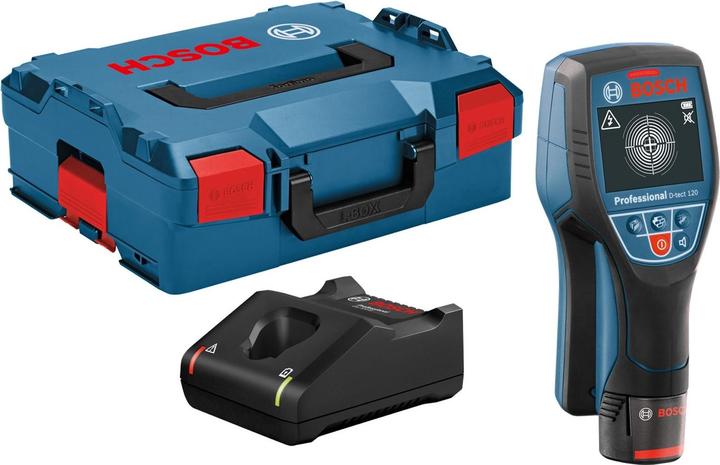

Scope of delivery

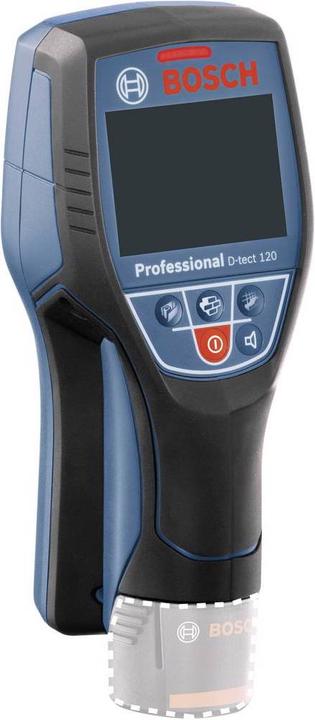

1 piece of wall scanner D-tect 120
1 piece of battery GBA 12V 2.0 Ah
1 piece of quick start card
1 piece of fast charger GAL 12V-40 Professional
1 piece of L-BOXX 136

Technical specifications
Dimensions L x W x H: 206 x 92 x 85 mm
Battery voltage: 12 V
Battery capacity: 2.0 Ah
Power supply: 12V lithium-ion battery or 4 x 1.5V LR6 batteries (AA)
Measurement accuracy: ± 10 mm (plus application-dependent deviation)
Maximum detection depth: 120 mm
Detection depth for ferrous metals max.: 120 mm
Detection depth for copper max.: 120 mm
Detection depth for live wires max.: 60 mm
Detection depth for water-carrying plastic pipes max.: 80 mm
Detection depth for wood max.: 38 mm
Automatic shut-off: 5 min
Wall types: concrete, drywall, universal
Weight: 3.28 kg.
