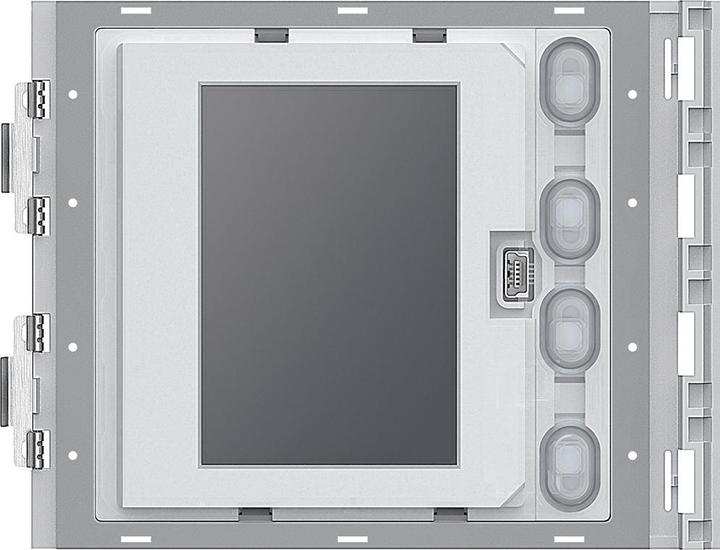

Legrand Display Module 352500

Manufacturer: Legrand
Designation: Display module graphic display
Type: 352500
Execution: speak/ring
Installation technology: Bus system
Number of call/ring buttons: 4000
Color: other
Width: 91 mm
Height: 115 mm
Depth: 27 mm

The Legrand Display Module 352500 is a module with a graphic display designed for storing, searching, and retrieving up to 4000 names. The graphic display must be connected directly to the audio door speaker or video speakers using the supplied connection cable. There are two functional modes to choose from: searching for a name in the address directory and making a call using the buttons on the device. When using the keyboard, the SCS address (internal addressing of the house station) can be directly selected. Multiple names can be assigned to one SCS address. Programming can be done in two ways: by manual entry through the module's buttons or via PC using the TiSferaDesign software (recommended method). It should be completed with the appropriate front panel.
