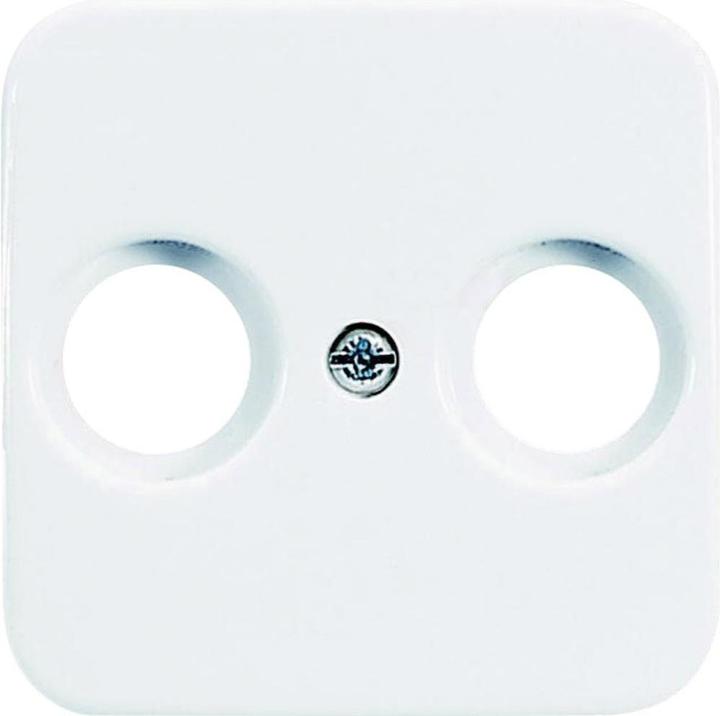

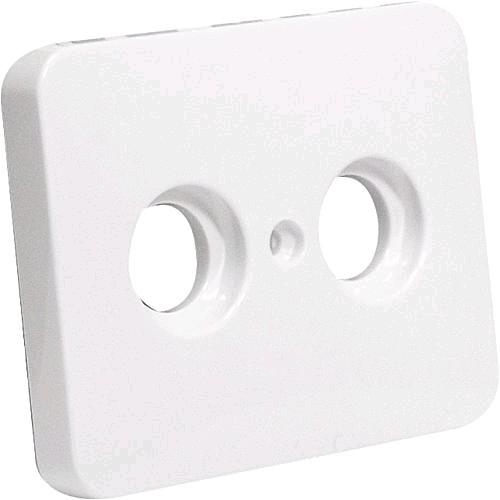

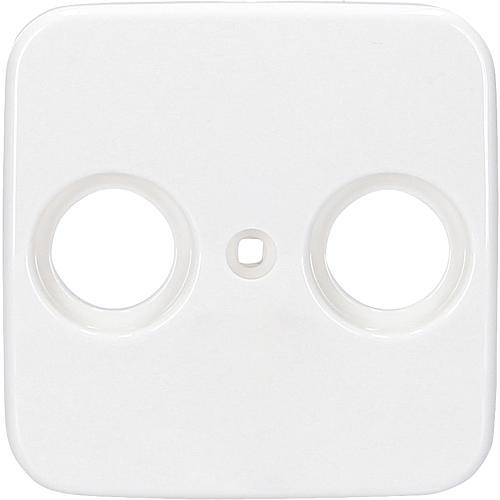

Busch-Jaeger Central Plate aws 2531-214

Manufacturer: Busch-Jaeger
Designation: Central plate aws for 2-hole antenna socket
Type: 2531-214
Composition: Central plate
Usage: Satellite
Mounting ring: no
With dust protection: no
With flap cover: no
Outlet direction: straight
Labeling field: without labeling field
With print: no
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: alpine white
RAL number (similar): 9010
Transparent: no
Mounting type: Screw mounting
Number of modules (in modular design): 1
With sockets/couplings: no
Suitable for number of sockets/couplings: 2
With strain relief: no
Shielded sockets: no
Shielded housing: no
Terminal block: no
With lighting: no
Suitable for protection class (IP): IP20
Device width: 54 mm
Device height: 54 mm
Device depth: 12.5 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate aws 2531-214: additional details
As a cover for standard 2-fold antenna sockets. According to DIN 45330. With central fastening M3. See inserts for antenna sockets.
