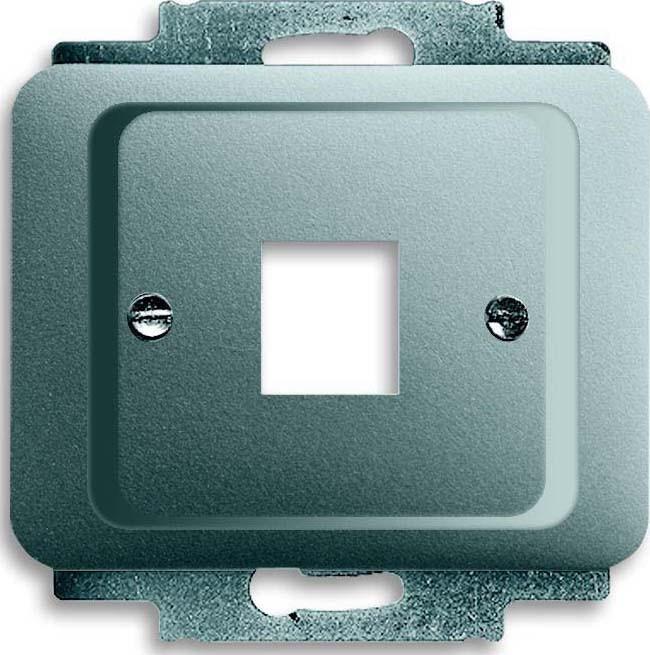

Busch-Jaeger central plate ti 2561-266

Manufacturer: Busch-Jaeger
Designation: Central plate ti for 1 modular jack
Type: 2561-266
Composition: Basic element with central cover plate
Use: Modular jack
Support ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labelling field: Without labelling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Lacquered
Surface finish: Matt
Colour: Titanium
Transparent: No
Mounting type: Fastening with screw
Number of modules (for modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Sockets shielded: No
Enclosure shielded: No
Luster terminal: No
With illumination: No
Suitable for protection class (IP): IP20

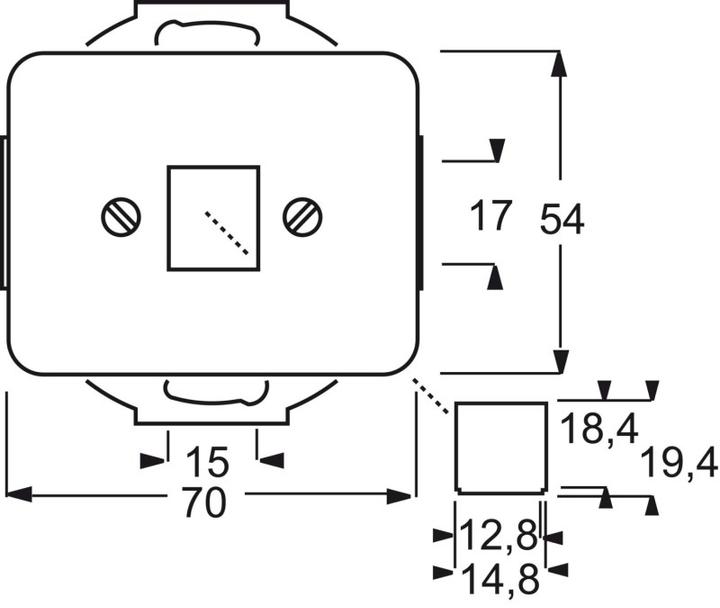

Device width: 71 mm
Device height: 32 mm
Device depth: 71 mm
Min. device box depth: 40 mm

Busch-Jaeger central plate ti 2561-266: further details
For 1 modular jack insert. Suitable for art. no. 0210, 0211 and 0219-101. Without spreader.
EAN: 4011395006580.
