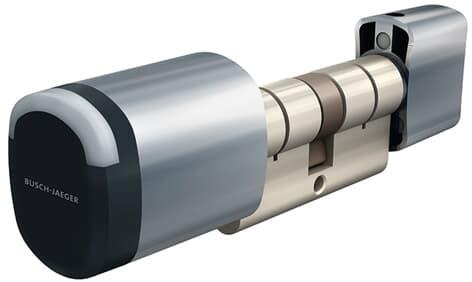

Busch-Jaeger Electric Cylinder D01EU406003TF1-03

Manufacturer: Busch-Jaeger
Designation: Electric Cylinder 40/60 T EU
Type: D01EU406003TF1-03
Standalone: no
Networkable: yes
PC Connection: no
Max. Number of Doors: 1
Interface Type: other
Reading Method: Data carrier
Signal Output: Light signal
Mounting Type: other
Operating Temperature: -35 to 55 °C
Protection Class (IP): IP66
Color: black
Version: Reader
Material: Metal
Power over Ethernet (PoE): no
Width: 31.5 mm
Height: 38.5 mm
Depth: 182 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no
VdS Class: none

Additional Details: Cylinder available for various door thicknesses.
Profile Type: Euro standard profile cylinder with interior knob
Battery Life: Up to 130,000 openings.
Supported Transponder Types: Mifare DESFire Transponder
Article Number: DO81WH-0x, DO81GY-0x, and DO81BK-0x.
To operate the cylinders, the Smart Access Point Pro/Lite, the AccessControl maintenance card (Art. No. D080MC-0x), and the mounting tool (Art. No. D080MT-0x) are required.
Encrypted communication with Busch AccessControl identification media (Art. No. D081xx-0x) as well as the AccessControl construction and maintenance cards (Art. No. D080MC-0x and D080CC-0x).
Further details on system setup can be found in the system manual.
Integrated LED status indicator with acoustic feedback.
Color of the cylinder head: Satin-Chromium Black
Radio Range (Free Field): 10 m
Extension of radio range through the use of the RF/IP Gateway (Art. No. D04011-0x) or the RF Repeater (Art. No. D04021-0x).
Dimensions of the electric knob: 22.3 mm x 47 mm x 39 mm
Dimensions of the cylinder base body: 30 mm to 140 mm (depending on the ordered type).
Battery included.
Battery Type: 4x LR1
EAN: 4011395288856.
