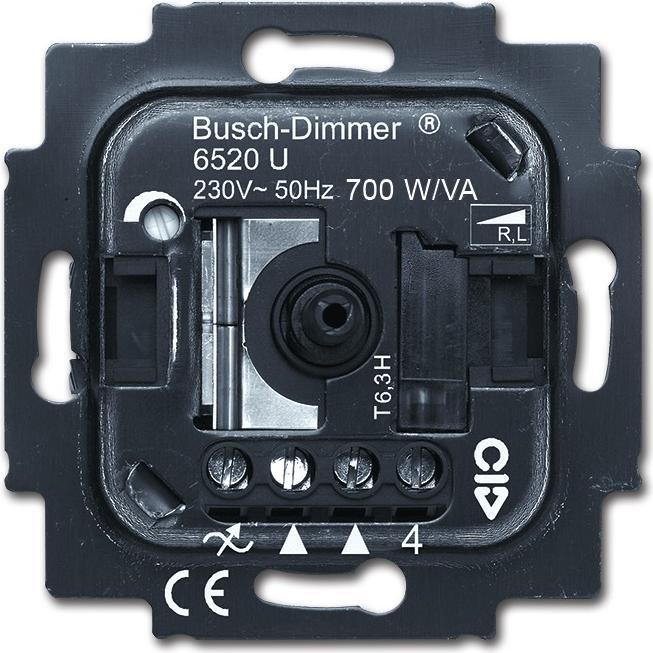

Busch-Jaeger dimmer insert 6520 U

Manufacturer: Busch-Jaeger
Designation: Dimmer insert with rotary actuation
Type: 6520 U
Composition: Basic element
Operating mode: Rotary/push button
App control via Bluetooth: No
Dimming phase angle: Yes
Dimming phase section: No
Series dimmer: No
Load type: Inductive load
Extension unit input: Yes
Light value memory: Yes
Usable with button: No
Usable with motion detector: No
Usable with presence detector: No
Usable with timer: No
Usable with radio button: No
Usable with IR button: No
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Colour: Black
Transparent: No
Suitable for protection class (IP): IP20
Impact resistance: IK00
Rated voltage: 207 V
Frequency: 50 Hz
Control voltage: 220 V
Rated ohmic load: 200 W
Type of connection: Screw terminal
Wire cross-section: 0.75 mm²

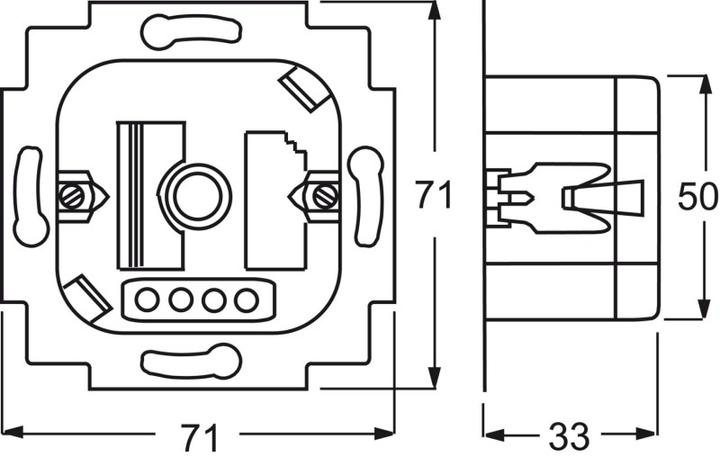

Unit width: 71 mm
Unit height: 71 mm
Unit depth: 32 mm
Min. device box depth: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Busch-Jaeger dimmer insert 6520 U features rotary actuation, push sequence changeover switch, and soft latching with phase control. It is suitable for incandescent lamps, 230 V halogen lamps, and low-voltage halogen lamps with conventional transformers. The device is short-circuit-proof and overload-proof, with adjustable minimum brightness. It does not include a central disc or spreader and is illuminated by a glow lamp, which is included with the central disc. When using conventional transformers, account for approximately 20% transformer losses. It comes with a connection terminal for mains disconnection components.
