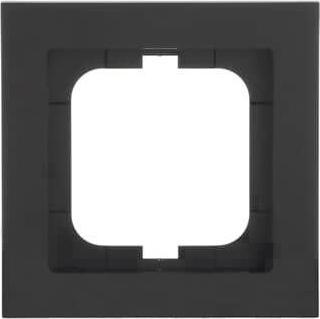

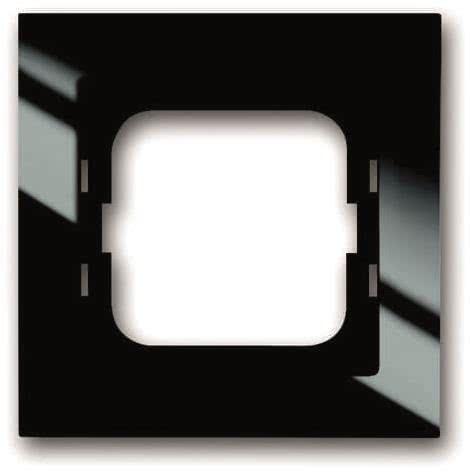

Busch-Jaeger Frame Single 1721-281

Manufacturer: Busch-Jaeger
Description: Single frame black
Type: 1721-281
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/label area: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: black
RAL number (similar): 9005
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting

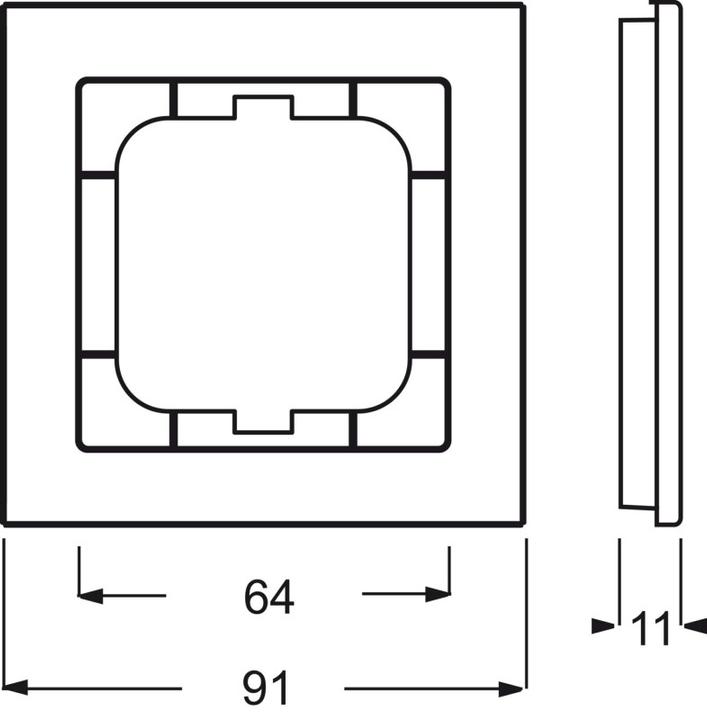

Width: 91 mm
Height: 91 mm
Depth: 11 mm
Installation width: 63 mm
Installation height: 63 mm
Diameter of hole (opening): 71 mm

Busch-Jaeger Frame Single 1721-281: additional details cover frame single frame, black axcent black. EAN: 4011395126363.
