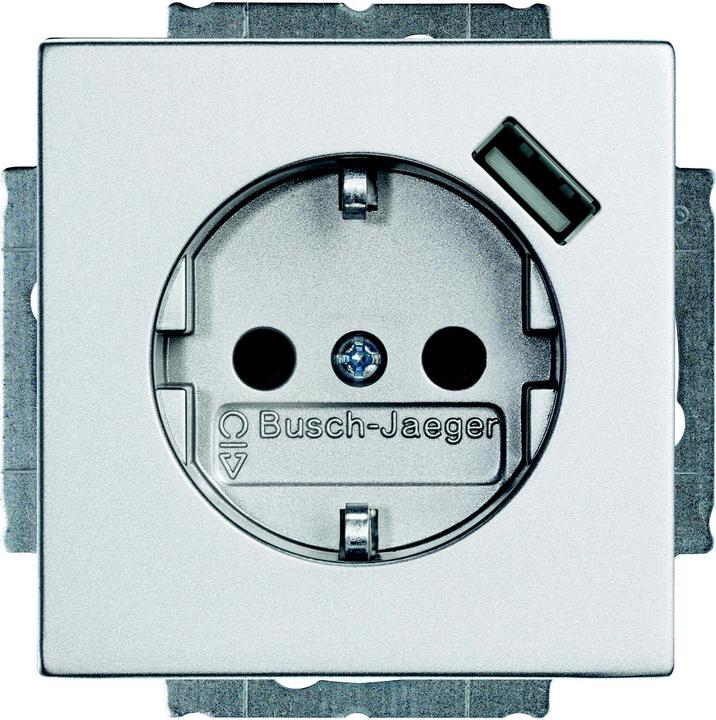

Busch-Jaeger Schuko/USB socket outlet 20 EUCBUSB-83

Manufacturer: Busch-Jaeger
Designation: Schuko/USB socket outlet
Color: Aluminum silver
Type: 20 EUCBUSB-83
Design: SCHUKO
Protective contact: Yes
Number of active contacts: 2
With built-in USB power supply: Yes
Number of units: 1
Number of modules: 1
Number of phases: 1
Connection type: Plug-in terminal
With increased contact protection: Yes
Insulated installation: Yes
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Painted
Surface finish: Matt
With loop-through function: Yes
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Suitable for protection class (IP): IP20
Impact resistance: IK03
Device width: 71 mm
Device height: 71 mm
Device depth: 53 mm
Min. depth of device socket: 35 mm
Cover: Central plate

Further details:
With plug connection. 2-pin (2 P + E) for charging and powering mobile devices via USB cable. With USB type A socket. With electronic short circuit protection and electronic overload protection. Simultaneous charging via USB connection and use of SCHUKO® socket. Connection terminals approved according to VDE 0620-1. No data transmission possible. When cleaning the device, use dust protection cap 2098.
EAN: 4011395164358.
