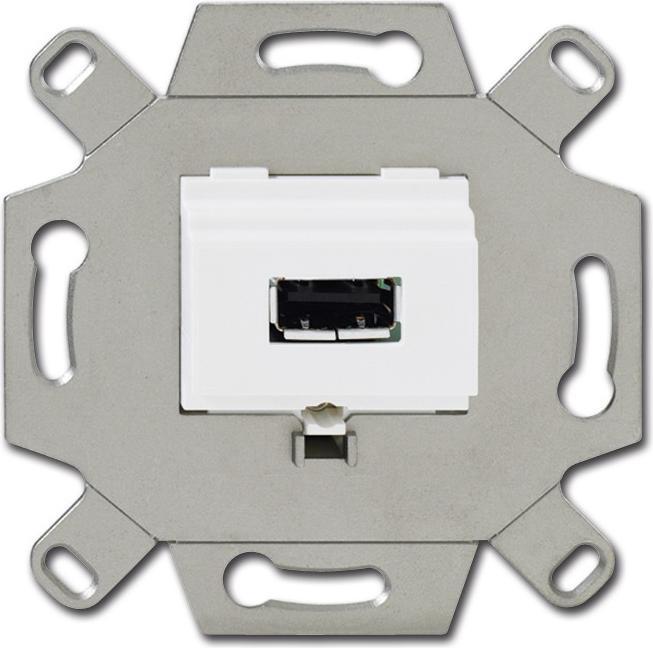

Busch-Jaeger USB Connection Socket 0261/12

Manufacturer: Busch-Jaeger
Description: USB connection socket alpine white
Type: 0261/12
Composition: Base element
Usage: USB
Mounting ring: yes
With dust protection: no
With flap cover: no
Outlet direction: straight
Labeling field: without labeling field
With print: no
Mounting type: flush-mounted
Material: metal
Material quality: other
Halogen-free: yes
Antibacterial treatment: no
Surface protection: other
Surface finish: matte
Color: alpine white
RAL number (similar): 9010
Transparent: no
Mounting type: screw mounting
Number of modules (in modular design): 1
With sockets/couplings: yes
Suitable for number of sockets/couplings: 1
With strain relief: yes
Shielded sockets: no
Shielded housing: no
Terminal block: no
With lighting: no
Suitable for protection class (IP): IP20

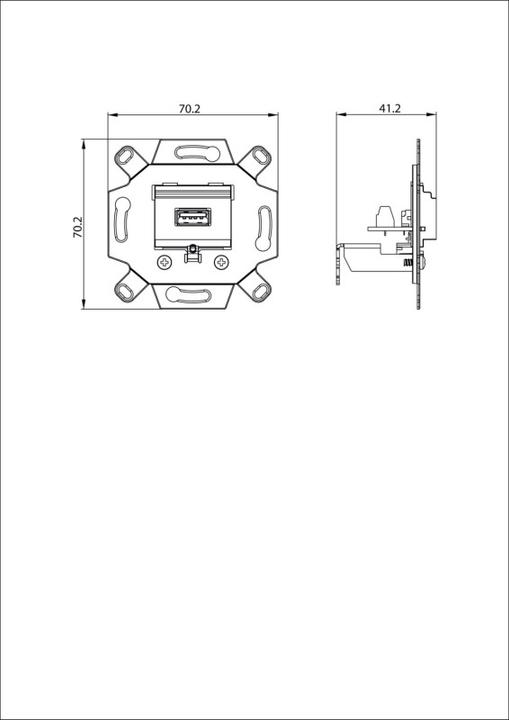

Device width: 71 mm
Device height: 71 mm
Device depth: 41.5 mm
Min. depth of device box: 34 mm

Busch-Jaeger USB Connection Socket 0261/12: additional details
Compatible with TAE central plates 2539-21x and 1766-xxx. For connecting mobile devices, such as computer accessories (printers, scanners, USB sticks, etc.) or digital cameras. USB socket type: Type A, USB 2.0 capable. For connecting 5-wire USB cables. Connection with screw terminals and strain relief. For installation in cable ducts, flush-mounted device boxes, and underfloor systems. For trouble-free installation, while adhering to the permissible bending radii, the use of the Kaiser electronic box is recommended.
