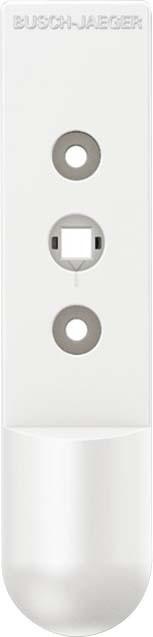

Busch-Jaeger Window Sensor 6222/1 AP-64-WL

Manufacturer: Busch-Jaeger
Designation: Wireless Window Sensor, studiows/mt
Type: 6222/1 AP-64-WL
KNX Bus System: no
KNX Radio Bus System: yes
Radio Bus System: yes
LON Bus System: yes
Powernet Bus System: yes
Other Bus Systems: free@home
Bidirectional Radio: yes
Design: other
Mounting Type: Surface-mounted
With Bus Coupling: yes
Color: white
Protection Class (IP): IP20

The window sensor is used to monitor and transmit the current position of the window handle (window open, closed, tilted). The status can be visualized on the free@home panel and in the free@home app. The window sensor is mounted between the existing window handle and the window frame. The existing window handle is reused.

Suitable for window handles: 7 mm square, 43 mm screw spacing, cam diameters of 10 and 12 mm, maximum size of the mounting plate of 34 x 77 mm (W x H). No wiring required. Accessories for mounting (square extension, screws, cam adapter) of the window sensor are included in the delivery.

Battery included. Battery type: CR2. Low battery notification in the free@home app. Programming via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online user manual in the current online catalog.

EAN: 4011395215562.
