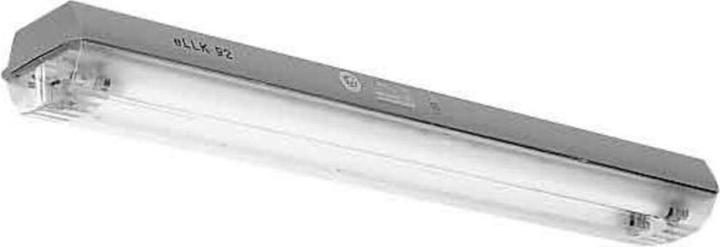

Ceag Safety Technology Light eLLK 92036/36 1/6-1

Manufacturer: Ceag Safety Technology
Designation: Light 2x36W EVG eins.DV
Type: eLLK 92036/36 1/6-1
Mounting type: Wall/Ceiling mounting
Adjustable: no
Light source: Fluorescent lamp
Includes light source: no
Suitable for number of light sources: 2
Socket: G13
Material of housing: Plastic
Material of cover: Transparent plastic
Voltage type: AC/DC
Nominal voltage: 110..254 V
Operating device: EVG
Includes operating device: yes
Replaceable operating device: no
Light distributor: Reflector
Beam angle: wide beam 41-80°
Rated lifespan L70/B50 at 25 °C: 60000 h
Protection class (IP): IP66
Protection class (NEMA): other
Impact resistance: IK10
Protection class: I
For Ex-Zone Gas: 1, 2
For Ex-Zone Dust: 21, 22
Rated ambient temperature according to IEC62722-2-1: -25..55 °C
Suitable for lamp power: 36 W
Max. system power: 75 W
Rated luminous flux according to IEC 62722-2-1: 6.7 lm
Light color: white
Color temperature: 3500..5500 K
Power factor: 0.95
Constant light output regulation: no
Width: 188 mm
Height/Depth: 130 mm
Length: 1.36 mm
Outer diameter: 0 mm
Wiring type: suitable for through wiring
Number of poles: 6
Conductor cross-section: 6 mm²
Connection type: Screw terminal

Additional details:
Ex-linear light for Zone 1/21
Variant: eLLK 92036/36 1/6-1K
Voltage: 110 V - 254 V AC and 110 V - 250 V DC
Frequency: 50 Hz / 60 Hz
Through wiring: no
Connection terminal points: 1x 6 terminal points
Lamp: 2x T26 / 36 W (not included)
Lamp socket: G13
Lumen: 6700 lm
Protection class: IP66
Protection class: I
Luminaire operating efficiency: 78%
Material of housing: Polycarbonate
Housing color: Light grey (RAL 7035)
Cable entry: 2x M25 thread (plastic) with 2x M25 cable gland (plastic) and 1x M25 blind plug (plastic).
