CellPack CWS 400A 36kV 50-95
107 mmProduct details

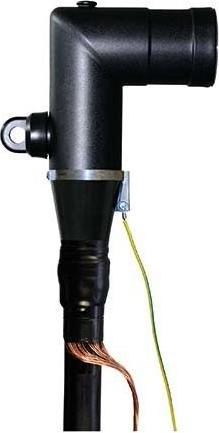

The CellPack CWS 400A 36kV 50-95 is a highly developed angled plug connector specifically designed for connecting single-core cables with various insulation materials and outer sheaths. This product is suitable for maximum network voltages up to 36 kV and meets the requirements of standards EN 50180 and EN 50181. The CWS 400A offers easy and secure installation, suitable for both copper and aluminum conductors. With an integrated screw terminal, it allows for flexible application in different electrical installations, including switchgear and transformers. The touch-safe outer conductive layer made of conductive EPDM provides additional safety and reliability. The product comes with a grounding kit and an installation manual, further simplifying the installation process. The piece-tested quality ensures high reliability in operation.
- Suitable for single-core cables with VPE or (H)EPR insulation
- Maximum network voltage up to 36 kV
- Easy installation for Cu and Al conductors
- Touch-safe outer conductive layer made of conductive EPDM
- Integrated screw terminal for multi-range application.
Suitable for | Manager, Wire |
Area of use | Inside |
Item number | 32086534 |
Manufacturer | CellPack |
Category | Adhesive tape |
Manufacturer no. | 250726 |
Release date | 17.10.2022 |
Suitable for | Manager, Wire |
Area of use | Inside |
Manufacturer Type | CWS 400A #250726 |
Adhesive tape Additional properties | for both Cu and AI conductors, Multi-range application due to integrated screw cable lug, quick, Safe to touch due to outer conductive layer made of conductive EPDM, Sheath fault testing of the cable possible when plugged in, Simple and safe installation, Unit tested, With capacitive measuring point |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Assembly instructions, Earthing set, Screw cable lug for main conductor, Set of 3 cable connectors, Silicone field controls, Small assembly material |
Items per sales unit | 1 Piece |
Length | 0.22 m |
Width | 107 mm |
Product Safety |
