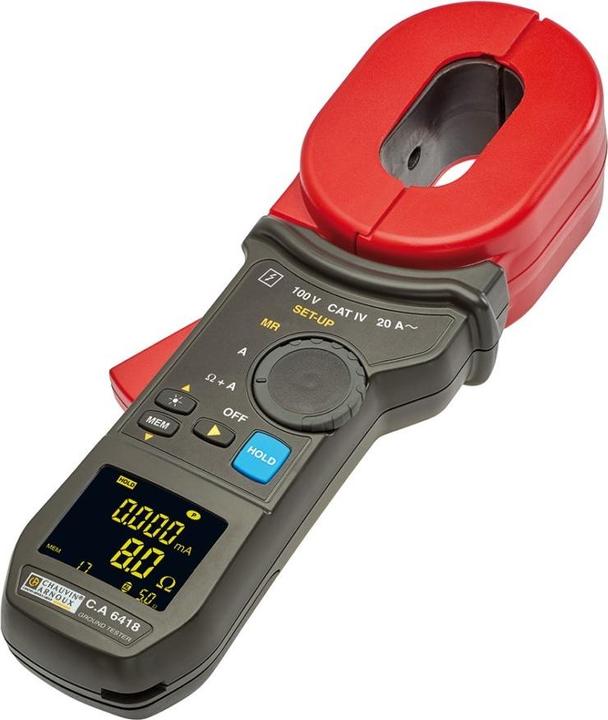

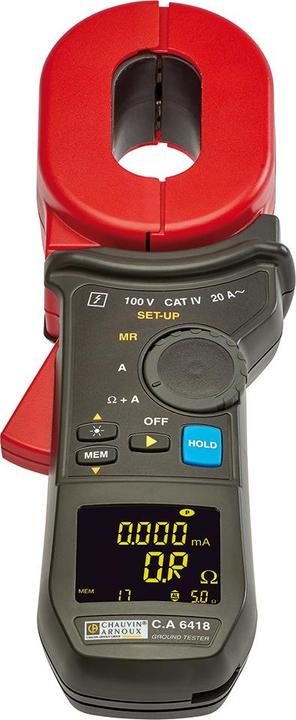

Chauvin Arnoux C.A 6418 Earth Resistance Clamp

Manufacturer: Chauvin Arnoux
Model: C.A 6418 Earth Resistance Clamp
Type: C.A 6418
Display: digital
Internal Memory: yes
Printer Connection: no
Integrated Printer: no
Limit Value Display: yes
Low Resistance Measurement: no
Selective Earth Measurement: no
Earth Loop Measurement: no
Specific Earth Measurement: no
Measuring Leakage Currents with Adapter: no
Interface: no
Bluetooth Interface: no
Measurement Value Storage: yes

Advantages: Earth resistance clamp with elongated measuring head - Check earth loops on busbars.

Description: The C.A 6418 earth resistance clamp comes in a transport case and is used to check all types of earth loops. The clamp can encircle rectangular busbars measuring 30 x 40 mm, 20 x 55 mm, and cables with a diameter of up to 32 mm. The C.A 6418 earth resistance clamp simultaneously displays the loop resistance and leakage current. A new level of user comfort is achieved through ergonomic innovations such as the new OLED display, which is easily readable under all lighting conditions at an angle of 180°. When the clamp is opened, a pre-HOLD function is automatically activated, and upon switching on, an automatic calibration of the air gap occurs. This makes measurements with the C.A 6418 particularly reliable.

Additional Technical Data:

• Wide measurement range from 0.010 Ω to 1200 Ω
• Current measurement from 0.5 mA to 20 A
• Adjustable alarms for Ω and A
• Automatic pre-HOLD function when opening the clamp
• Storage of 300 measurement values with time/date
• Automatic calibration of the air gap upon switching on
• Sound signal and automatic shut-off
• EAN: 3663653005739.
