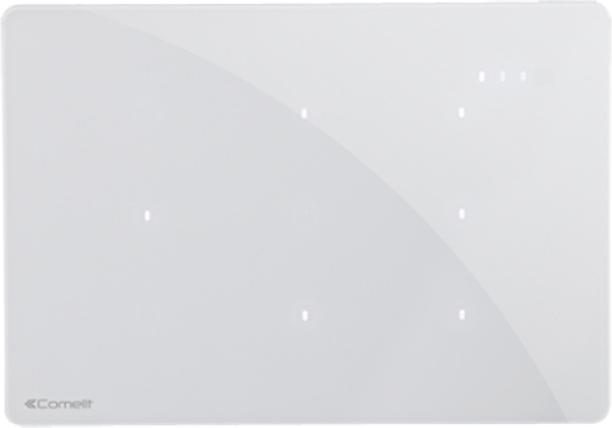

Comelit Group Control Panel ONE/E

Manufacturer: Comelit Group
Designation: Control Panel One Easy
Type: ONE/E
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Bidirectional Radio: no
Mounting Type: Surface-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Control Points: 4
With LED Display: no
With Labeling Field: no
With Display: no
Material: Plastic
Material Quality: other
Surface Protection: other
Surface Finish: glossy
Color: white
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP30
Min. Depth of Device Box: 36 mm

Comelit Group Control Panel ONE/E: additional details
Control unit for SimpleHome System. Functions can be set during programming. Touch-sensitive control elements. Option to set 1, 2, or 3 simple control points or 1 or 2 simple control points and one control point for automated doors and gates. Brightness sensor for automatic adjustment of LED brightness. The color of each individual LED can be customized during programming. Complements with a cover from the available color palette. Mounting in a 3-module box for the residential series, in a round box with mounting claws, or in a box with a center distance of 60 mm (vertical). Dimensions: 1113x78x36 mm. Max. Input Current: 30 mA.
