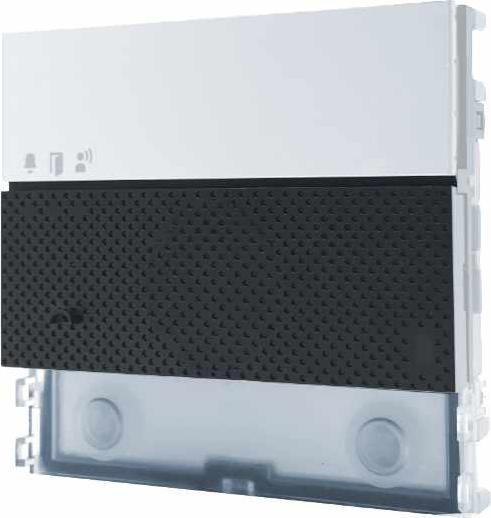

Comelit Group loudspeaker module UT1010VCW

Manufacturer: Comelit Group
Designation: Loudspeaker module SB, WS
Type: UT1010VCW
Version: Audio module
Reading method biometric: No
Reading method code: No
Reading method data carrier: No
Installation technology: Bus system
Type of input voltage: DC
Operating voltage: 33 V
Power over Ethernet (PoE): Other
Flush mounting: No
Surface mounting: No
With housing: No
Housing material: Plastic
Number of call/bell buttons: 2
Includes keypad: No
Number of users: 100
With day/night function: No
Function PTZ (pan/tilt/zoom): No
Manually adjustable camera: No
Picture system: Other
Feature picture system: Colour
Hearing aid compatible: No
Colour: White
Width: 100 mm
Height: 35 mm
Depth: 90 mm

Comelit Group loudspeaker module UT1010VCW is an audio loudspeaker module in white with a connection option for an analogue external camera for Ultra Door Station, System Ultra door station, system SB. It is designed for use in systems with power supply unit art. 1595 and 4888C. The module is easy to install and simple to configure thanks to intelligent call button programming. It features a twilight sensor for automatic switch-off of backlighting of nameplates in daylight, an omni-directional digital microphone, and two loudspeakers for hi-fi audio. Additionally, it includes optical and acoustic displays for the handicapped, adjustable in the programming. The module is prepared for 2 call buttons and can be completed with a blind cover or single or double buttons made of polymethyl methacrylate with a coating against yellowing made of aluminium in white. Settings and programming can be done from the front without removing the module. Dimensions: 100x90x35 mm.
