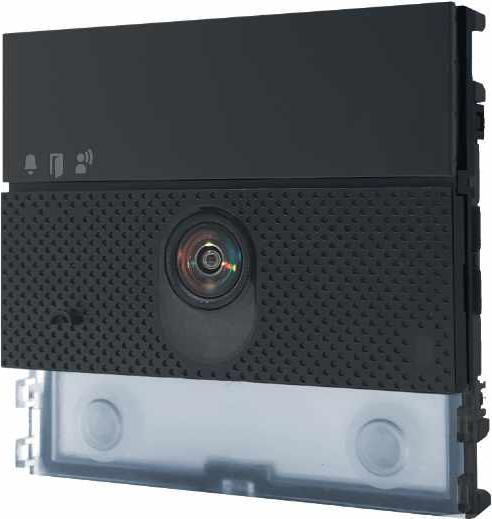

Comelit Group loudspeaker module UT2020B

Manufacturer: Comelit Group
Designation: Loudspeaker module SB2, bw
Type: UT2020B
Design: Video module
Reading method biometric: No
Reading method code: No
Reading method data carrier: No
Installation technology: 2-wire
Type of input voltage: AC/DC
Operating voltage: 33 V
Power over Ethernet (PoE): Other
Flush mounting: Yes
Surface mounting: No
With housing: No
Material of housing: Aluminium
Number of call/bell buttons: 2
Contains keypad: No
Number of users: 240
With day/night function: No
Opening angle camera: 125°
Function PTZ (pan/tilt/zoom): No
Manually adjustable camera: No
Image system: Other
Feature image system: Colour
Hearing aid compatible: No
Colour: Black
Width: 100 mm
Height: 90 mm
Depth: 35 mm

Comelit Group loudspeaker module UT2020B is an audio-video loudspeaker module in black for Ultra door stations. It is designed for use in systems with power supply unit art. 1210 / 1210A. The module is easy to install and configure thanks to intelligent call button programming. It features a twilight sensor for automatic switch-off of backlighting of nameplates in daylight. The module includes an omni-directional digital microphone and two loudspeakers for hi-fi audio, along with a wide-angle colour camera (field of view: 120° horizontal, 90° vertical). Additional optical and acoustic displays for the handicapped are adjustable in the programming. It is prepared for 2 call buttons and can be completed with a blind cover, single or double buttons in polymethyl methacrylate with anti-yellowing coating or in aluminium in black. Settings and programming can be done from the front without removing the module. Dimensions: 100 x 90 x 35 mm. EAN: 8023903421569.
