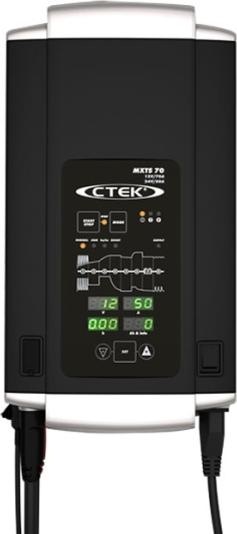

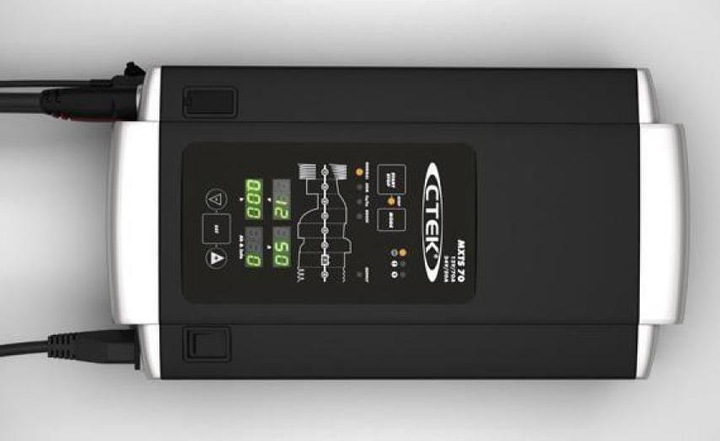

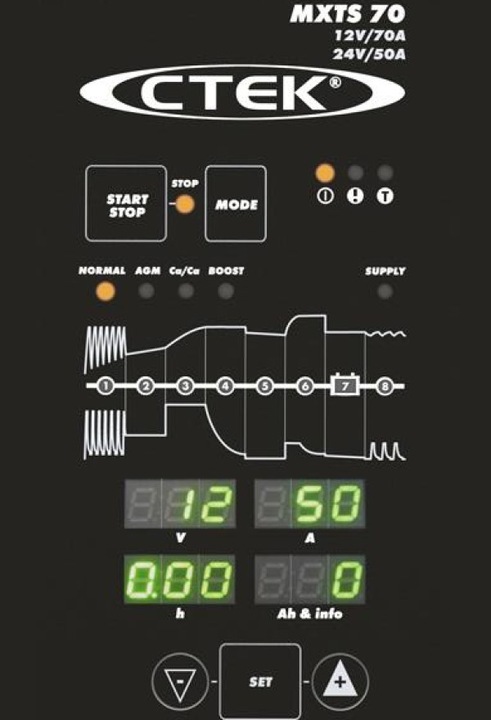

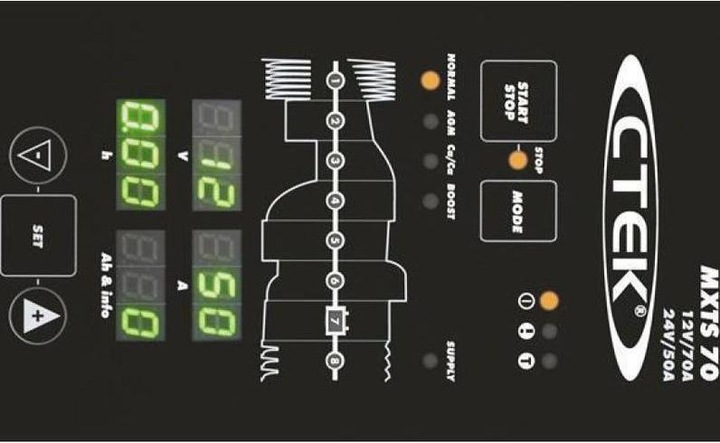

The MXTS 70/50 is a high-performance power supply device for memory flashing and a powerful workshop charger designed with the latest technology. It can charge both 12 V and 24 V lead-acid batteries, is equipped with advanced technology, and is extremely user-friendly. The MXTS 70/50 features various displays that show the charging status, charging voltage, charging current, charging time (h), and energy (Ah) to monitor the battery condition. It is equipped with all the features and functions required for professional battery maintenance in workshops, such as:

• Selectable modes for optimal battery size adjustment.
• Selectable power supply program for a constant voltage output of 50 A at 13.6 - 14.8 V / 27.2 - 29.6 V.
• Patented desulfation function.
• Reconditioning function to restore deeply discharged batteries with acid stratification.
• Unique buffer/pulse maintenance charging.
• Diagnostic functions that determine whether a battery can accept and hold a charge.
• Temperature sensor for optimal charging at all times.
• Integrated USB interface for parameter upload.

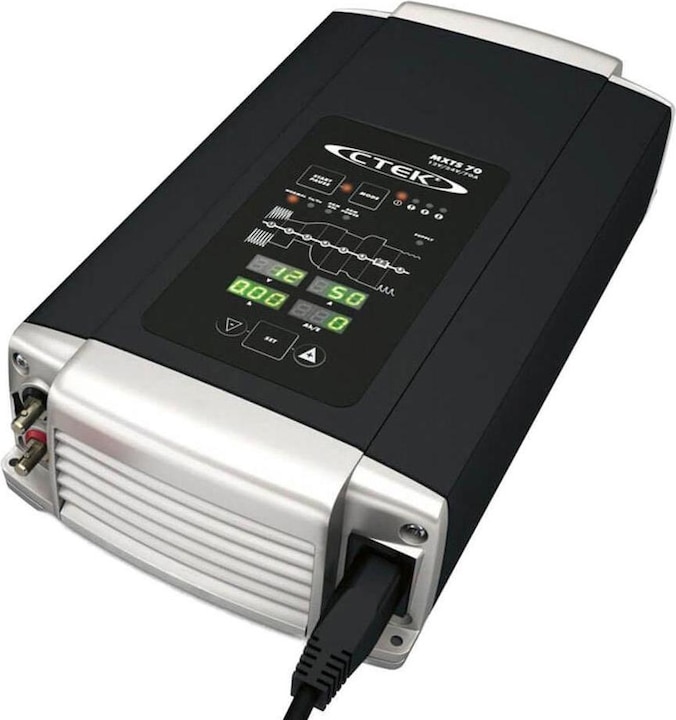

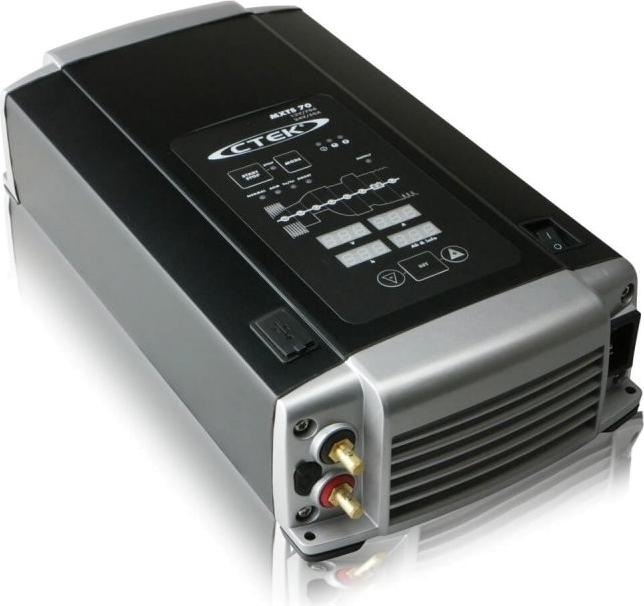

The MXTS 70/50 is a fully automatic 8-stage charger with a selectable charging current of 50 A for 12 V batteries from 20-1,500 Ah or 24 V batteries from 20-1,500 Ah. The charger has an IP20 protection rating, is equipped with a highly stable aluminum housing for challenging work environments, and protects vehicle electronic systems. It is spark-proof, reverse polarity, and short-circuit safe.
