Description

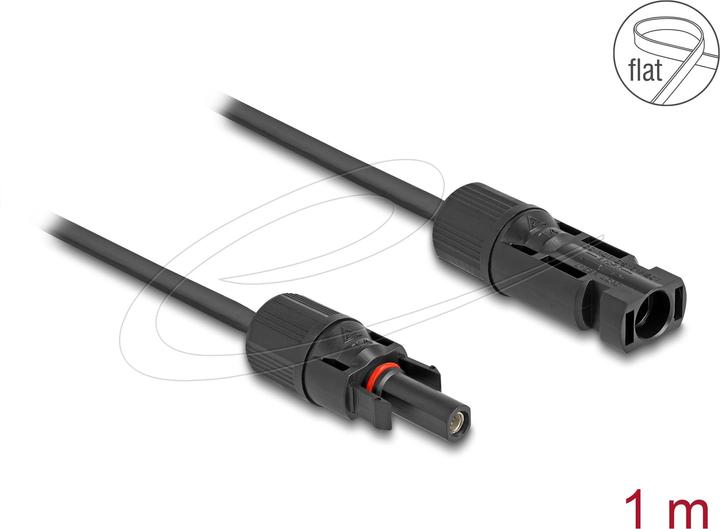

With this DL4 solar flat cable from Delock, energy harvested from a photovoltaic system can be transmitted.

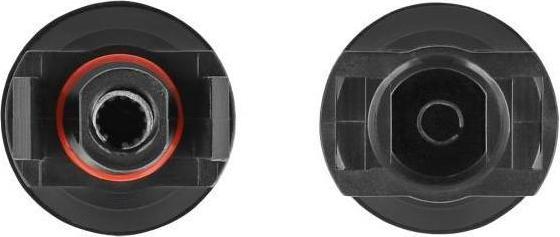

DL4 Connectors
The DL4 plugs and sockets feature a snap-in function that prevents unwanted disconnections and ensures a secure connection. The connection can be released with the appropriate tool.

IP67 Dust and Waterproof
The DL4 solar cable is protected against dirt and moisture.

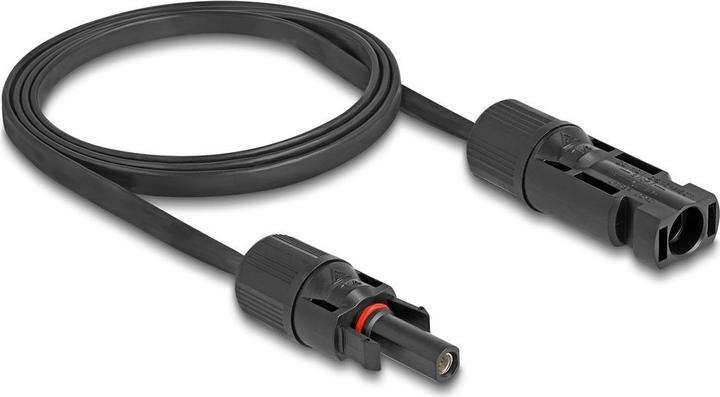

Super Flexible and Flat
The solar cable is ideally suited for installation through a window. The material of the cable sheath is flexible, making the cable very resistant to stress.

Specifications

• Connectors:

1 x DL4 plug
1 x DL4 socket

• Cable cross-section: approx. 3.3 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C to 90 °C
• Cable dimensions: approx. 10.0 x 2.0 mm
• Protection class: IP67
• Voltage: max. 1000 V
• Color: black
• Length including connectors: approx. 1 m

System Requirements

• An available DL4 connection

Package Contents

• DL4 cable.
