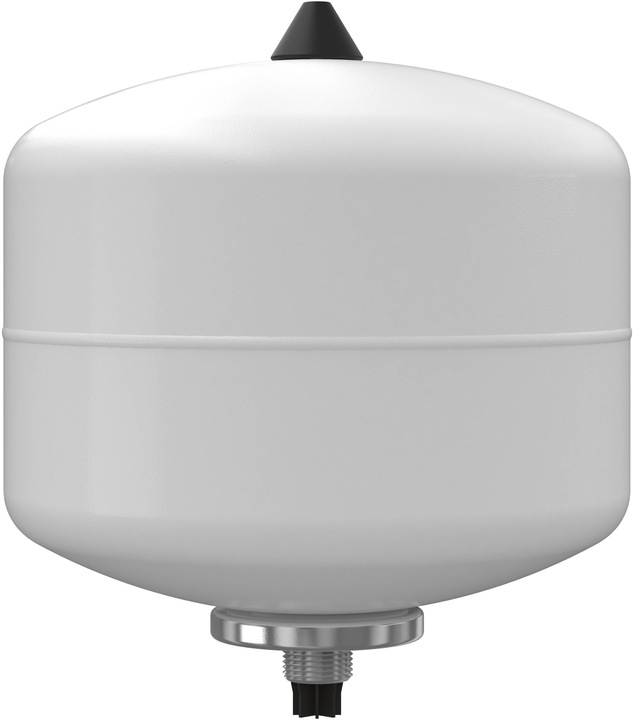

Diaphragm pressure expansion vessel REFIX DD
Price in EUR including VAT
Delivered between Thu, 15.5. and Mon, 19.5.
More than 10 items in stock at supplier
More than 10 items in stock at supplier
Product details
For drinking water - pressure boosting and water heating systems according to DIN 1988 - connection made of stainless steel - flow through with high-flow star - membrane according to DIN EN 13831/DIN 4807 T5/KTW-C and W 270 - built and tested according to DIN 4807 T5 - DIN DVGW Reg. Further technical features: - Pressure stage flange other- Ultimate pressure 10.00- Capacity 12.00l- With replaceable diaphragm No- With feet No- Nominal diameter expansion connection 3/4 inch (20)- Placement horizontal No- Placement vertical Yes- Pipe outer diameter expansion connection 26.90mm- Max. Medium temperature (continuous operation) 70.00.
Maximum flow rate | 12 l/min |
Max. Delivery pressure | 10 bar |
Item number | 21809379 |
Publisher | Reflex |
Category | Water pumps |
Manufacturer no. | 7307800 |
Release date | 19.8.2022 |
Colour | White |
Exact colour description | White |
Maximum flow rate | 12 l/min |
Max. Delivery pressure | 10 bar |
Power supply | None |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Length | 28 cm |
Width | 28 cm |
Height | 31.80 cm |
