DJI Power Adapter Module for Solar Panel (MPPT)

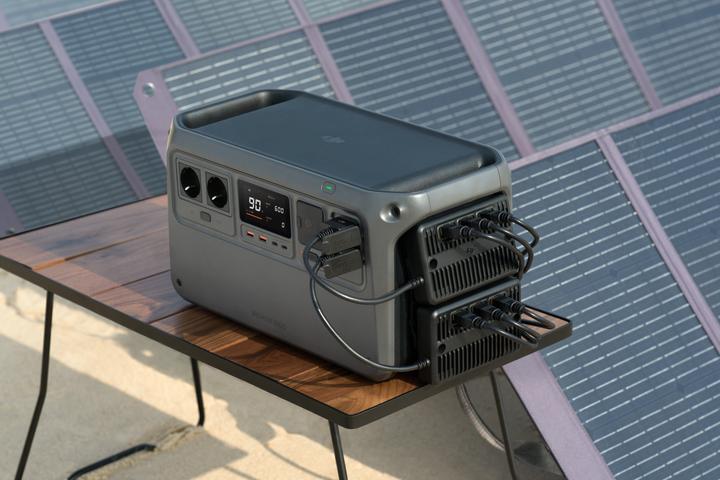

When a DJI Power Series power station is connected to the DJI Power Adapter Module for Solar Panel (MPPT), customers can connect solar panels via the XT60 interface on the adapter panel. This allows the DJI Power Series to be charged in an environmentally friendly manner. It is recommended to use only solar panels from the DJI-certified brand Zignes with the DJI Power Series power stations. For solar panels from other brands, an MPPT module must be used, and the connection of the solar panel must be converted to an XT60 interface to enable charging of the DJI Power Series with solar energy.

Required accessories are sold separately. Connection to the DJI Power Series and DJI-certified Zignes solar panels is possible. For environmentally friendly solar charging of the DJI Power Series.

Tips:
1. An MPPT module can be connected to up to three solar panels.
2. To use solar panels that are not officially recommended by DJI and to avoid damage to the MPPT module and the power station, ensure that the open-circuit voltage of the solar panel is less than 30 V. The output power of each solar panel should not exceed 200 W, with the total output power of the solar panels connected to the entire MPPT module limited to 400 W.
3. When using solar panels with the MPPT module, the included metal heat dissipation clamp must be installed.
4. When used with the DJI Power 500, the maximum output power of the solar panels connected to the entire adapter module must not exceed 300 W.
