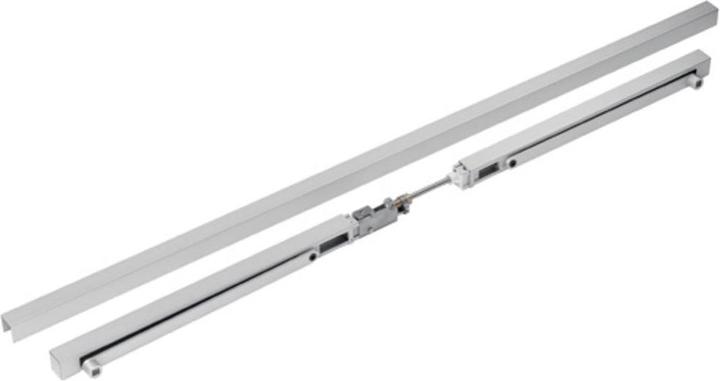

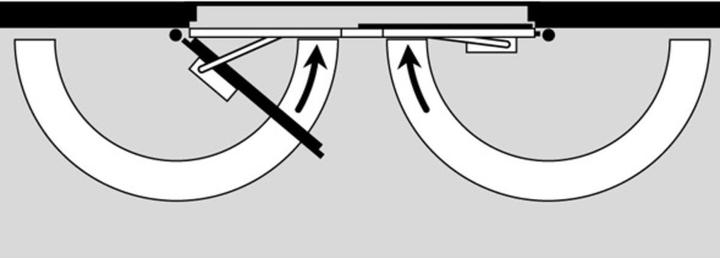

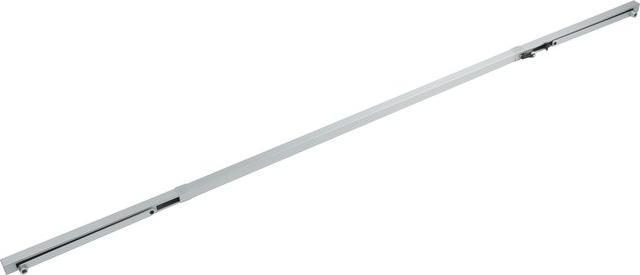

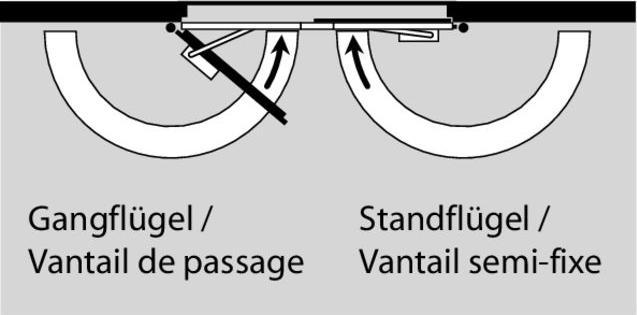

For the TS 93 B of the sliding door closing sequence controller DORMA G-SR, it ensures that with double-leaf doors, the active leaf always closes after the inactive leaf. With a push rod clamping system independent of the door closer's hydraulics, it provides maximum safety and reliability (no door creeping). An overload protection safeguards the closing sequence control and the door construction from damage. It is combined with the DORMA TS 93B door closer and is suitable for installation on the hinge side.

Suitability certification: The DORMA TS 93 G-SR system has been tested by the State Material Testing Institute Dortmund for use on double-leaf doors. The suitability certification is required in conjunction with the respective fire and smoke protection door.

Specifications for door widths:

• V 1350: 2500 mm
• VK 1220: 1350 mm
• VL: 2500 - 3200 mm

Delivery without door closer, please order separately.

Features:

• Color: silver
• Model: GSR/V
• Min. door width: 1350 mm
• Max. door width: 2500 mm
• Suitable for: TS 93 B
• Design: mechanical
• Function: closing sequence control
• Installation type: hinge side
• Brand: DORMAKABA.
