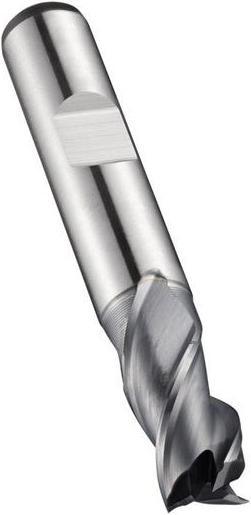

The Dormer Long Hole Cutter HSS-E-PM DIN 327 D is a high-precision tool specifically designed for demanding milling applications. With a nominal diameter of 5 mm and three cutting edges, this cutter delivers excellent performance in shoulder milling, groove milling, and ramp milling across various materials, including structural steel, stainless steel, and pure aluminum. The Alcrona coating enhances wear resistance and extends the tool's lifespan. The cutter is manufactured according to the DIN 327 D standard and features a 6 mm Weldon shank, ensuring secure attachment in the machine. With a helix angle of 40° and a rake angle of 15°, this long hole cutter is ideally suited for precise and efficient machining processes. Its compact design, with a working length of 52 mm and a short flute length of 8 mm, allows for versatile use in tight working spaces.

• High-quality HSS-E-PM material composition for improved performance
• Alcrona coating for increased wear resistance
• Suitable for various materials such as structural steel, stainless steel, and pure aluminum
• Optimal geometry with a 40° helix angle and 15° rake angle
• Compact design with a short flute length for versatile applications.
