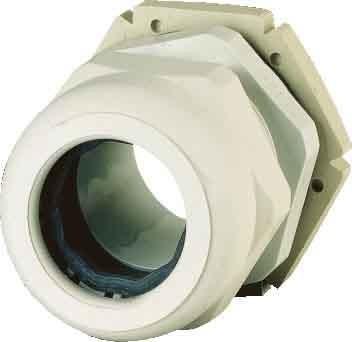

Eaton cable gland V-M63 Manufacturer :Eaton Designation :Cable gland metric Type :V-M63 Thread type :metric Nominal thread size metric/PG :63 Nominal thread size in inches NPT/gas pipe thread :other Thread pitch :1.5 mm Thread length :15 mm Width across flats :68 mm Hexagonal dimension :0 mm Suitable for cable diameter :34...48 mm Material :plastic Material grade :polyamide (PA) Surface protection :untreated Halogen-free :yes Glass-fibre reinforced :no Protection class (IP) :IP68 Impact-resistant :yes Colour :grey RAL number :7035 Bending protection :no With locknut :yes Engaging in opening :no Version :straight Multiple sealing insert :no Flat cable gland :no With strain relief :yes Type of seal :Cut-out sealing ring Separable gland :no Application temperature :-20..120 °C Explosion-proof version :no For Ex-zone gas :without For Ex-zone dust :without For armoured cables :no EMC version :no Shielded :no Eaton cable gland V-M63: further details cable gland, cable entry=M63, bore diameter=63,5mm, use cable NYM/NYY, 4-wire=NYM 4x35qmm , protection class IP68 up to 5 bar (30min), polyamide, halogen free, RAL 7035, with locknut and integrated strain relief, fire class V2 according to UL94, , EAN: 4015082148355.
