Product Description

The GC-PW 16 gasoline water pump allows for the rapid pumping of large volumes of water, making it ideal for creating an independent water supply for non-potable use. Its powerful 1.6 kW four-stroke gasoline engine provides sufficient torque to pump up to 14,000 liters per hour at a maximum lift height of 28 meters. Both the pressure and suction connections are equipped with a G1½ external thread. Thanks to its robust rubber feet, the GC-PW 16 stands securely and is vibration-dampened. The pump features a 1.8-liter tank, enabling longer operating periods. For convenient filling, there is a water filling screw, and any residual water can be drained after use via a water drainage screw. The device is easily portable thanks to its practical carrying handle.

Product Highlights

• 4-stroke engine
• Water filling nozzle

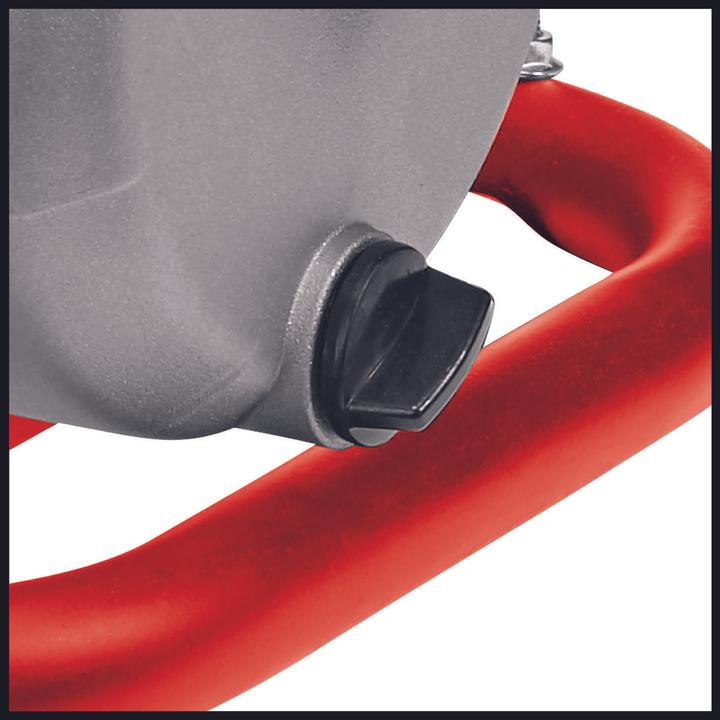

• Water drainage screw
• Oil shortage protection
• Integrated check valve
• Rubber feet
• Carrying handle

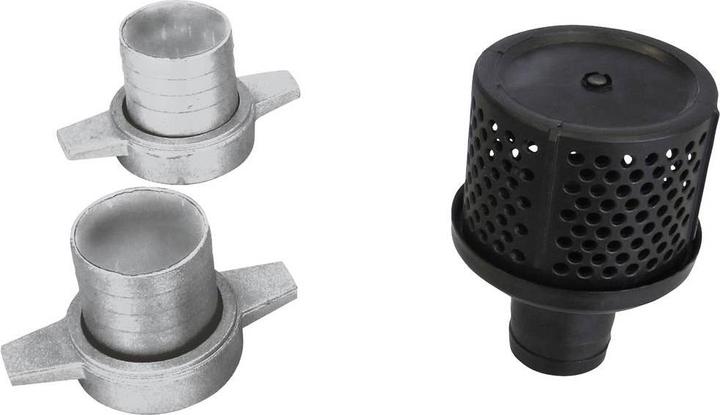

• Includes 2 hose adapters 38.1 mm (1.5”) with hose clamps
• Includes suction basket 38.1 mm (1.5”) with hose clamp
• Includes screw and spark plug wrench

Specifications

Technical Data

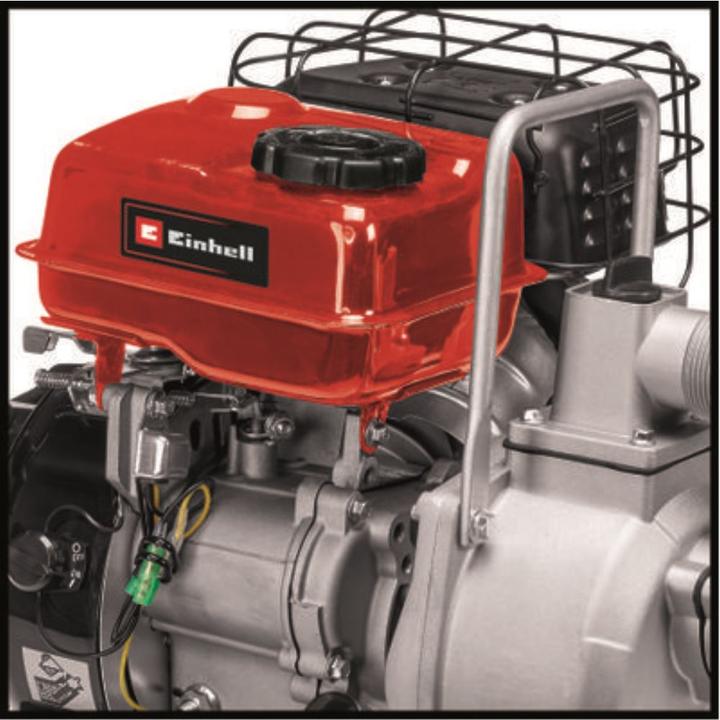

• Engine: Four-stroke, air-cooled
• Displacement: 79 cm³
• Power: 1.6 kW
• Speed: 3600 min^-1
• Fuel tank capacity: 1.8 L

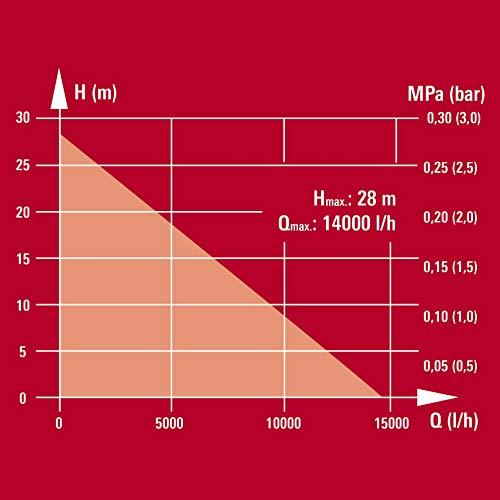

• Flow rate: 14,000 L/h
• Lift height: 28 m
• Delivery pressure: 2.8 bar
• Suction height: 7 m
• Suction connection: 47.8 mm (G11/2 AG)
• Pressure connection: 47.8 mm (G11/2 AG)

Logistical Data

• Length: 435 mm
• Width: 360 mm
• Height: 400 mm
• Gross weight of individual packaging: 16.9 kg
• Product weight: 15.5 kg.
