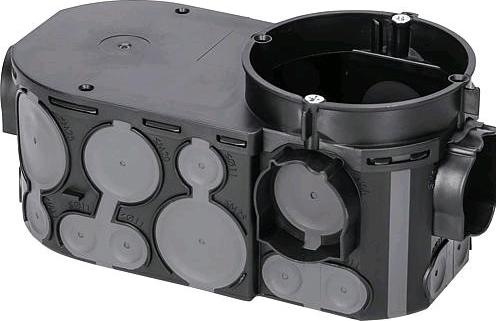

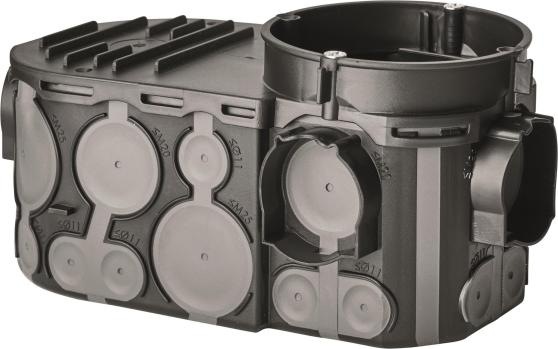

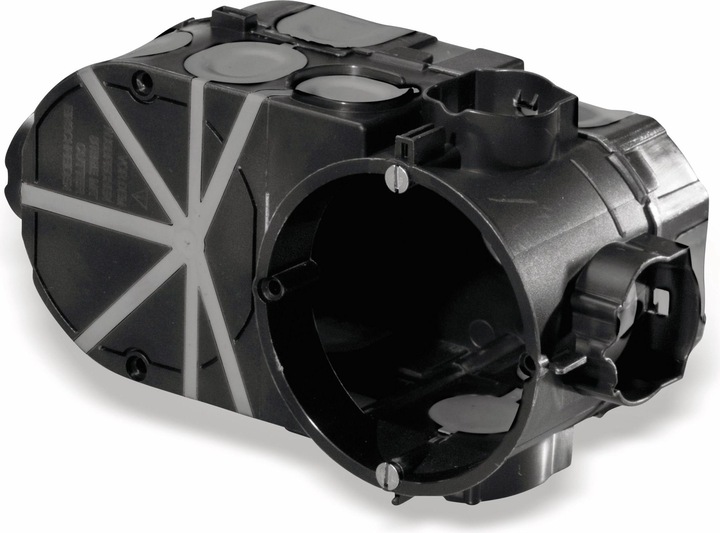

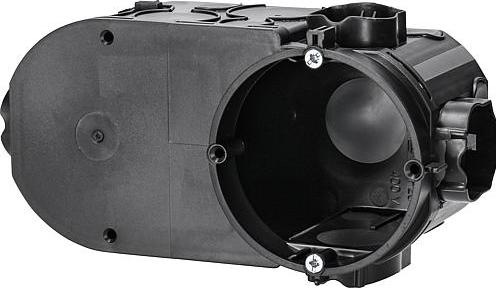

UP electronic box, windproof. For the installation of EIB modules or similar, as well as NV transformers up to 48 mm in height. Expandable with putty compensation ring E130 to a double connection box.

Mounting type: flush-mounted.
Shape: oval.
Design: device connection box/case.
Version: double.
With rotating ring: no.
Couplable: yes.
Filling: none.
Length: 151 mm.
Width: 80 mm.
Depth: 67 - 67 mm.
Internal depth: 66 mm.
For number of device inserts: 1.
Fastening of device screws: with screws.
Housing entry through breakout opening: no.
Housing entry through sealing membrane: yes.
Housing entry through pipe connector: yes.
Housing entry through stepped membrane: no.
For pipe diameter: 20/25 mm.
Suitable for cable diameter: 0 - 11 mm.
Pipe locking: no.
Pipe locking optional: no.
Rear entry: yes.
Number of entries: 2.
Material: plastic.
Halogen-free: yes.
Surface: untreated.
Color: black.
Protection class (IP): IP20.
Cover version: none.
Transparent cover: no.
Cover fastening: screwed.
Sealability: no.
Function retention: none.
With shielding: no.
Windproof: yes.
Max. conductor cross-section: 4 sq mm.
Light hook fastening: no.
Connector: pipe connector.
With nail tabs: no.
Special application: none.
